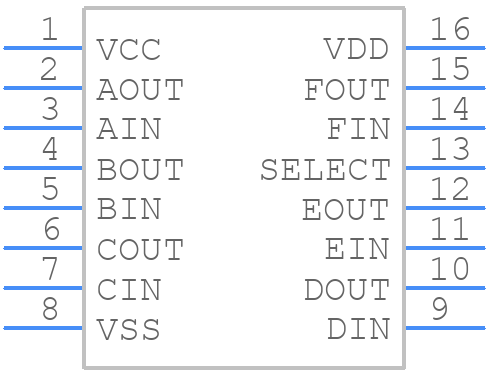

CD4504BF3A - Texas Instruments

CD4504BF3A Details

• Manufacturer Part Number:

  CD4504BF3A

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  DIP

• Pin Count:

  16

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Delay-Max:

  280 ns

• Input Characteristics:

  STANDARD

• Interface IC Type:

  TTL/CMOS TO CMOS TRANSLATOR

• JESD-30 Code:

  R-GDIP-T16

• JESD-609 Code:

  e0

• Length:

  19.56 mm

• Number of Bits:

  6

• Number of Functions:

  6

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Output Characteristics:

  PUSH-PULL

• Output Latch or Register:

  NONE

• Output Low Current-Max:

  -0.0068 A

• Output Polarity:

  TRUE

• Package Body Material:

  CERAMIC, GLASS-SEALED

• Package Code:

  DIP

• Package Equivalence Code:

  DIP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.08 mm

• Supply Current-Max:

  18 mA

• Supply Voltage-Max:

  18 V

• Supply Voltage-Min:

  2 V

• Supply Voltage-Nom:

  10 V

• Supply Voltage1-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  MILITARY

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
