CD4515BF3A - Texas Instruments

Description: Latch/Decoder/Demultiplexer Single 4-to-16 24-Pin CDIP Tube

Download CD4515BF3A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

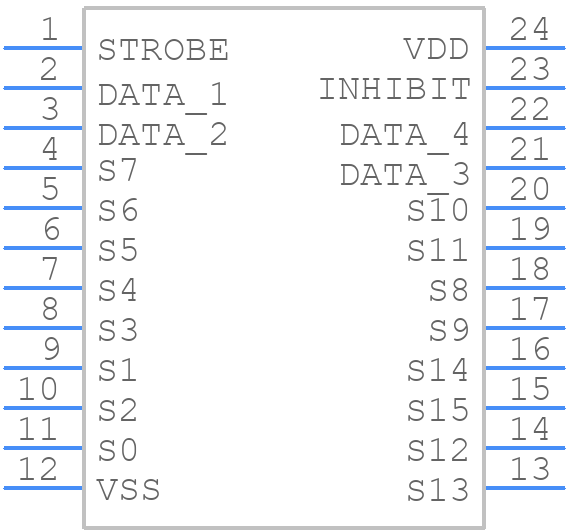

CD4515BF3A - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

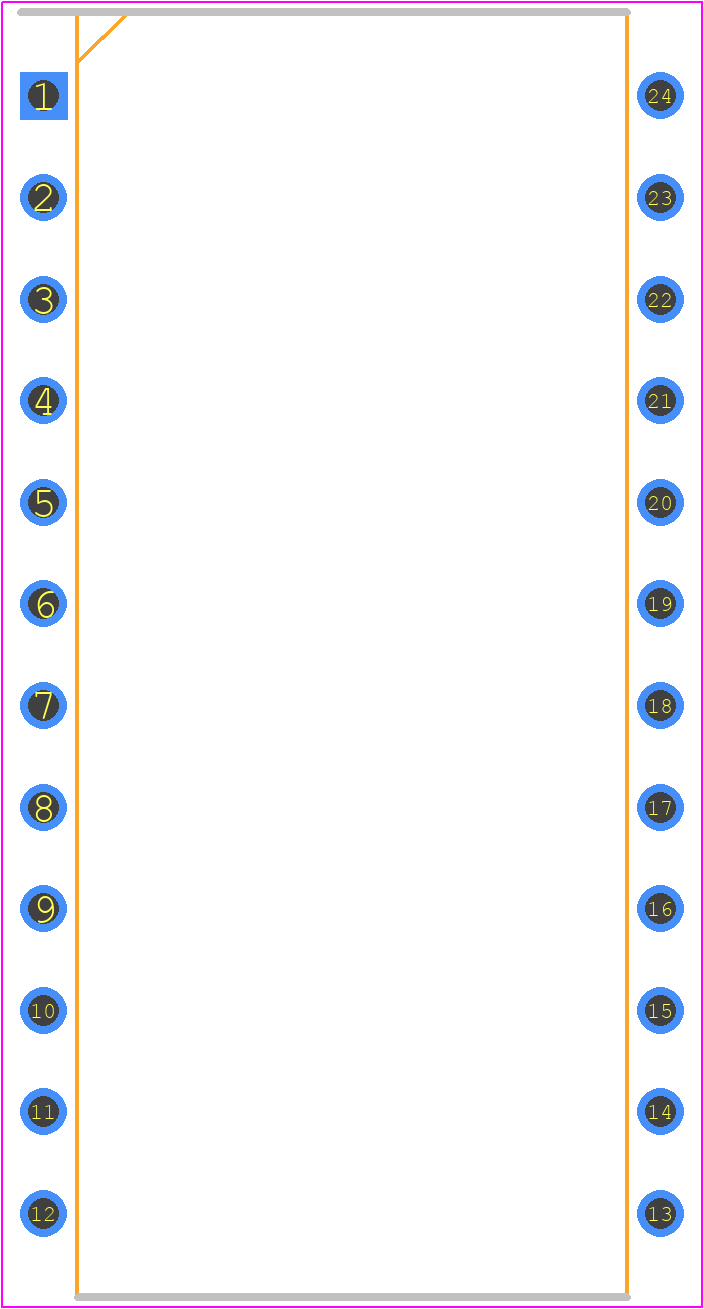

CD4515BF3A - Texas Instruments PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - J (R-GDIP-T**)
click to zoom

CD4515BF3A Details

  • Manufacturer Part Number:

    CD4515BF3A

  • Brand Name:

    Texas Instruments

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    24

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ADDRESS LATCHES

  • Family:

    4000/14000/40000

  • Input Conditioning:

    LATCHED

  • JESD-30 Code:

    R-GDIP-T24

  • Length:

    31.75 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    4-LINE TO 16-LINE DECODER

  • Max I(ol):

    0.0015 A

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Polarity:

    INVERTED

  • Package Body Material:

    CERAMIC, GLASS-SEALED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Power Supply Current-Max (ICC):

    3 mA

  • Prop. Delay@Nom-Sup:

    370 ns

  • Propagation Delay (tpd):

    970 ns

  • Qualification Status:

    Not Qualified

  • Screening Level:

    38535Q/M;38534H;883B

  • Seated Height-Max:

    5.16 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    15.24 mm

CD4515BF3A Frequently Asked Questions (FAQs)

  • The CD4515BF3A can handle clock frequencies up to 100 kHz. However, it's recommended to check the specific application and ensure that the clock frequency is within the recommended range to avoid any potential issues.
  • To ensure proper power and decoupling, connect the VCC pin to a stable 5V power supply, and decouple the power supply lines with 0.1uF and 10uF capacitors. Additionally, ensure that the power supply noise is within the recommended specifications.
  • The recommended operating temperature range for the CD4515BF3A is -40°C to 85°C. Operating the device outside this range may affect its performance and reliability.
  • The asynchronous reset input (RST) should be connected to a logic high (VCC) during normal operation. When the RST input is pulled low, the device will reset and all outputs will be cleared. Ensure that the RST input is properly debounced to avoid any potential issues.
  • The CD4515BF3A can sink or source up to 1.5mA of current per output pin. However, it's recommended to check the specific application and ensure that the output current is within the recommended range to avoid any potential issues.
