CD4527BE - Texas Instruments

Description: CMOS BCD RATE MULTIPLIER

Download ECAD Model
Schematic
symbols

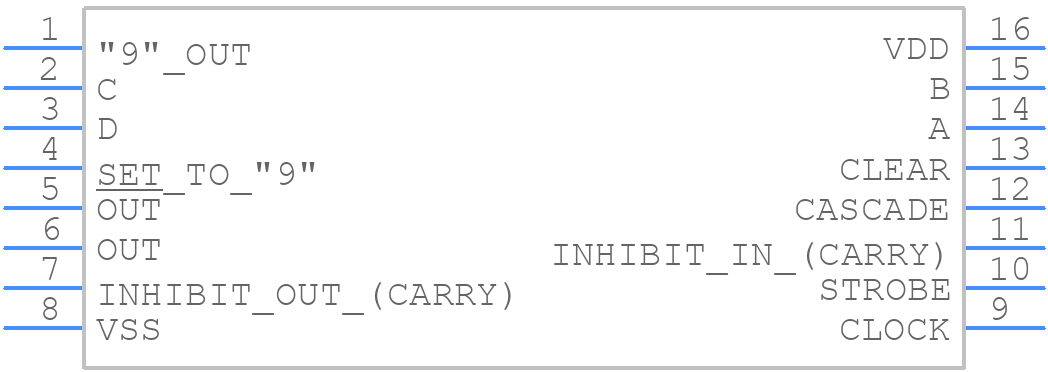

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

CD4527BE - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N (R-PDIP-T16)
click to zoom

3D Models

CD4527BE - Texas Instruments  - 3D model - Dual-In-Line Packages - N (R-PDIP-T16)
click to zoom

CD4527BE Details

  • Manufacturer Part Number:

    CD4527BE

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    DIP, DIP16,.3

  • Pin Count:

    16

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • Risk Rank:

    1.46

  • Additional Feature:

    BCD RATE MULTIPLIER; COMPLEMENTARY OUTPUT
