- Part Number CD4532BM96
- Manufacturer Texas Instruments
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - D (R-PDSO-G16)
- Released Date Apr 17, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
CD4532BM96 Details
-
Manufacturer Part Number:
CD4532BM96
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Pin Count:
16
-
Country Of Origin:
Mexico
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
CD4532BM96 Frequently Asked Questions (FAQs)
-
The recommended operating voltage range for the CD4532BM96 is 4.5V to 15.5V, as specified in the datasheet. However, it's recommended to operate the device within the 5V to 12V range for optimal performance.
-
To ensure proper power-on and power-off, it's recommended to use a slow-rising power supply voltage (dv/dt < 10V/ms) and to avoid sudden changes in voltage. Additionally, a decoupling capacitor (e.g., 0.1uF) should be placed close to the VCC pin to filter out noise.
-
The CD4532BM96 can support clock frequencies up to 100 kHz. However, the maximum frequency may vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and application notes for more information.
-
The output enable (OE) pin should be tied to a logic level (either high or low) to enable or disable the output. Leaving the OE pin floating can cause unpredictable behavior. It's recommended to use a pull-up or pull-down resistor to ensure a stable logic level.
-
To minimize noise and ensure proper operation, it's recommended to follow good PCB layout practices, such as keeping the power and ground traces separate, using a solid ground plane, and minimizing trace lengths. Additionally, it's recommended to place the decoupling capacitor close to the VCC pin and to use a low-ESR capacitor.
Trust Checks
Community Provided
System Verified
Community Approved
CD4532BM96 Overview

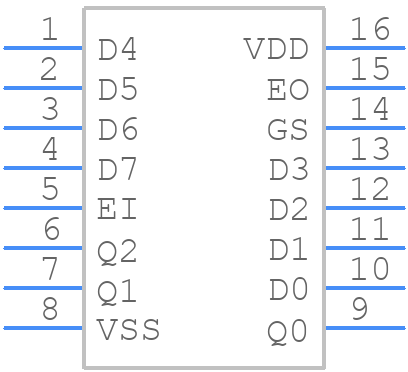

Use the download button to access the CD4532BM96 schematic symbol, PCB footprint, and 3D model.
