The recommended operating voltage range for CD54ACT139F3A is 4.5V to 5.5V, although it can operate from 2V to 6V with reduced performance.
To ensure signal integrity, use a low-impedance PCB, keep signal traces short, and use termination resistors or series resistors to reduce reflections and ringing. Also, consider using a clock buffer or repeater to regenerate the clock signal.
Yes, CD54ACT139F3A can operate at 3.3V, but the output voltage swing will be reduced, and the device may not meet the specified propagation delay and transition times. However, it can still be used in 3.3V systems with some performance degradation.
To avoid latch-up or damage, ensure that the VCC supply is powered up before the input signals, and that the input signals are stable before the clock signal is applied. Also, consider using a power sequencing controller or a voltage supervisor to ensure proper power-up and power-down sequencing.
The maximum clock frequency that CD54ACT139F3A can handle is 100 MHz, although this may vary depending on the specific application, PCB layout, and operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CD54ACT139F3A Overview

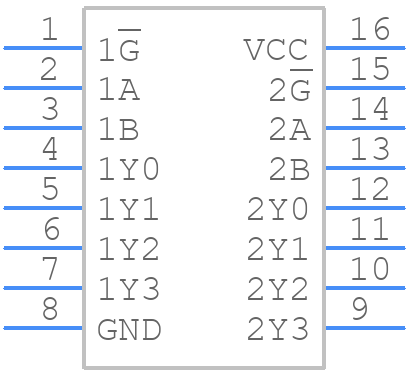

Use the download button to access the CD54ACT139F3A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CD54A,
or try a keyword search, such as Decoder/Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
