CD54ACT573F3A - Texas Instruments

Description: Latch Transparent 3-ST 8-CH D-Type 20-Pin CDIP Tube

Download CD54ACT573F3A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

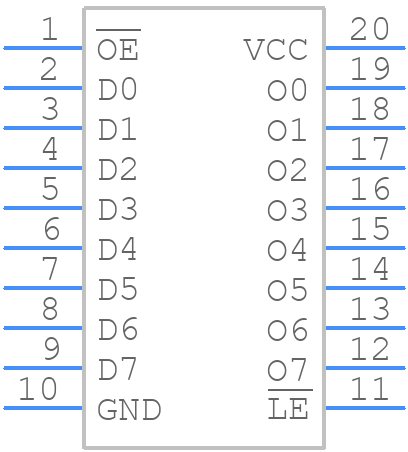

CD54ACT573F3A - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CD54ACT573F3A - Texas Instruments PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - J(R-GDIP-T20
click to zoom

CD54ACT573F3A Details

  • Manufacturer Part Number:

    CD54ACT573F3A

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Control Type:

    ENABLE HIGH

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    ACT

  • JESD-30 Code:

    R-GDIP-T20

  • JESD-609 Code:

    e0

  • Length:

    19.939 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.024 A

  • Number of Bits:

    8

  • Number of Functions:

    8

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    CERAMIC, GLASS-SEALED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Power Supply Current-Max (ICC):

    0.16 mA

  • Prop. Delay@Nom-Sup:

    10.4 ns

  • Propagation Delay (tpd):

    12.5 ns

  • Qualification Status:

    Not Qualified

  • Screening Level:

    38535Q/M;38534H;883B

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

CD54ACT573F3A Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for CD54ACT573F3A is 4.5V to 5.5V, as specified in the datasheet. However, it's recommended to operate the device at a fixed voltage of 5V for optimal performance.
  • It's recommended to power up the VCC pin before the input signals, and power down the VCC pin after the input signals. This ensures that the device is properly initialized and avoids any potential latch-up or damage.
  • The maximum frequency of operation for the CD54ACT573F3A is typically limited by the propagation delay and clock skew of the device. As a general guideline, the maximum frequency of operation is around 100 MHz, but this can vary depending on the specific application and system design.
  • It's recommended to use a termination resistor (e.g. 50 ohms) at the output of the device to prevent signal reflections and ensure signal integrity. The termination resistor should be placed as close to the output pin as possible.
  • It's recommended to follow good layout and routing practices, such as keeping the signal traces short and direct, avoiding sharp corners and vias, and using a solid ground plane to reduce noise and EMI. Additionally, it's recommended to place the device close to the power supply and use decoupling capacitors to reduce noise and voltage droop.
