CD54HCT365F3A - Texas Instruments

Description: Buffers & Line Drivers HEX BUS DRIVER, NON-INVERTING (QML)

Download CD54HCT365F3A Model

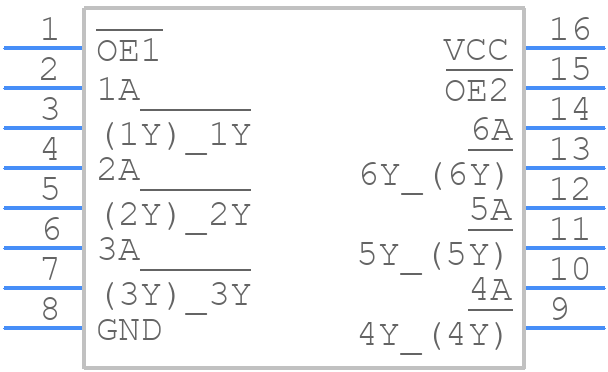

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

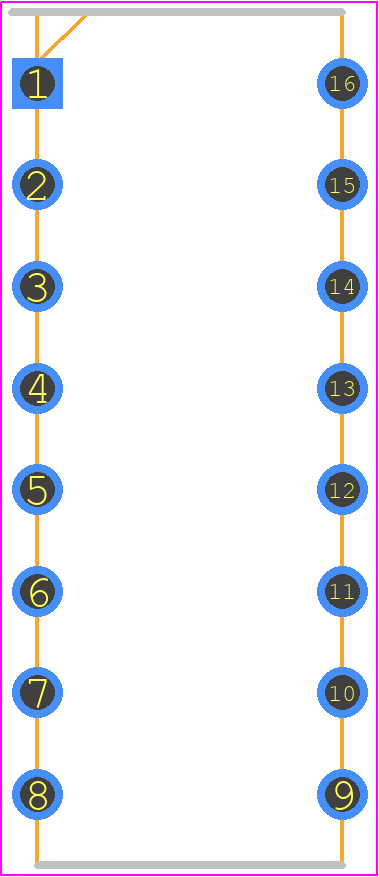

CD54HCT365F3A - Texas Instruments PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - J(R-GDIP-T16)
click to zoom
3D Models
CD54HCT365F3A - Texas Instruments  - 3D model - Ceramic Dual-In-Line Packages - J(R-GDIP-T16)
click to zoom

CD54HCT365F3A Details

  • Manufacturer Part Number:

    CD54HCT365F3A

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    WITH DUAL OUTPUT ENABLE

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    HCT

  • JESD-30 Code:

    R-GDIP-T16

  • JESD-609 Code:

    e0

  • Length:

    19.05 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.006 A

  • Number of Bits:

    6

  • Number of Functions:

    6

  • Number of Ports:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    CERAMIC, GLASS-SEALED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Power Supply Current-Max (ICC):

    0.08 mA

  • Prop. Delay@Nom-Sup:

    38 ns

  • Propagation Delay (tpd):

    38 ns

  • Qualification Status:

    Not Qualified

  • Screening Level:

    38535Q/M;38534H;883B

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

CD54HCT365F3A Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the CD54HCT365F3A is 4.5V to 5.5V, as specified in the datasheet. However, it's recommended to operate the device at a fixed voltage of 5V for optimal performance.
  • To ensure signal integrity, it's essential to follow proper PCB design practices, such as using controlled impedance traces, minimizing trace lengths, and using termination resistors as needed. Additionally, consider using a signal integrity analysis tool to simulate and optimize your design.
  • While the CD54HCT365F3A is specified for 5V operation, it can be used in a 3.3V system with some limitations. However, the device's output voltage will be reduced, and the switching speed may be slower. It's recommended to consult the datasheet and perform thorough testing to ensure the device meets your system's requirements.
  • To ensure proper operation, it's essential to sequence the power rails correctly. The CD54HCT365F3A should be powered up after the system's clock and other critical components. A power sequencing controller or a carefully designed power-up sequence can help ensure reliable operation.
  • The CD54HCT365F3A can support clock frequencies up to 100 MHz, but the actual frequency limit may depend on the system's design, PCB layout, and signal integrity. It's recommended to consult the datasheet and perform thorough testing to determine the maximum clock frequency for your specific application.
