Part Image

CD74AC573M96G4 - Texas Instruments

Description: Latch Transparent 3-ST 8-CH D-Type 20-Pin SOIC T/R

Download CD74AC573M96G4 Model

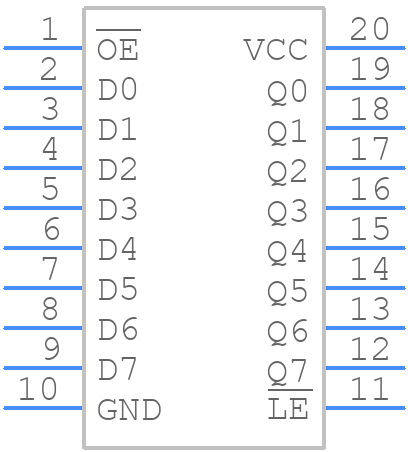

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CD74AC573M96G4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G20)
click to zoom
3D Models
CD74AC573M96G4 - Texas Instruments  - 3D model - Small Outline Packages - DW (R-PDSO-G20)
click to zoom

CD74AC573M96G4 Details

  • Manufacturer Part Number:

    CD74AC573M96G4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOP, SOP20,.4

  • Pin Count:

    20

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Control Type:

    ENABLE HIGH

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    AC

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    12.8 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.024 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    0.16 mA

  • Prop. Delay@Nom-Sup:

    11.9 ns

  • Propagation Delay (tpd):

    150 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.5 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CD74AC573M96G4 Overview

Use the download button to access the CD74AC573M96G4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CD74A, or try a keyword search, such as Bus Driver/Transceivers

Parts related to CD74AC573M96G4

Showing 0 results

CD74AC573M96G4 Alternates

Showing results

Image Part Number Model
Part Image CD74AC573M96 Rochester Electronics LLC

AC SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20, GREEN, PLASTIC, SOIC-20

Part Image 74AC573D-T NXP Semiconductors

IC AC SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20, Bus Driver/Transceiver

Part Image 74AC573SCT Fairchild Semiconductor Corporation

Bus Driver, AC Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, SOIC-20

Part Image CD74AC573ME4 Texas Instruments

AC SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20, GREEN, PLASTIC, SOIC-20

Part Image MC74AC573DWC Motorola Mobility LLC

AC SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDSO20, PLASTIC, SOIC-20
