The recommended operating voltage range for the CD74ACT646M96 is 4.5V to 5.5V, as specified in the datasheet. However, it's essential to note that the device can tolerate a voltage range of 3.5V to 7V, but the performance may vary.
The CD74ACT646M96 has a maximum junction temperature (TJ) of 150°C. To ensure proper thermal management, it's recommended to keep the device's operating temperature below 85°C. You can use thermal pads, heat sinks, or other cooling mechanisms to dissipate heat, especially in high-power or high-frequency applications.
The CD74ACT646M96 is a high-speed bus transceiver, and its maximum frequency of operation depends on the output load and the operating voltage. According to the datasheet, the maximum frequency is 100 MHz at 5V and 50 MHz at 3.3V, but it's recommended to consult the datasheet's switching characteristics table for more detailed information.
To ensure signal integrity when using the CD74ACT646M96, it's essential to follow proper PCB design practices, such as using controlled impedance traces, minimizing trace lengths, and avoiding signal reflections. Additionally, you can use termination resistors, series resistors, or other signal conditioning techniques to improve signal quality.
Yes, the CD74ACT646M96 is compatible with both 3.3V and 5V logic levels. It's a voltage-tolerant device, meaning it can accept inputs from 3.3V or 5V logic levels and translate them to the desired output level. However, it's essential to ensure that the input voltage levels are within the specified range to avoid any potential damage or malfunction.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CD74ACT646M96 Overview

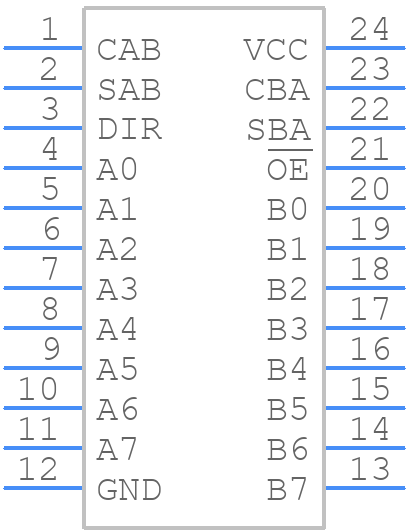

Use the download button to access the CD74ACT646M96 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CD74A,
or try a keyword search, such as Bus Driver/Transceivers
