Part Image

CD74HC153M - Texas Instruments

Description: Texas Instruments CD74HC153M, Multiplexer Dual 4:1, 16-Pin SOIC

Download ECAD Model

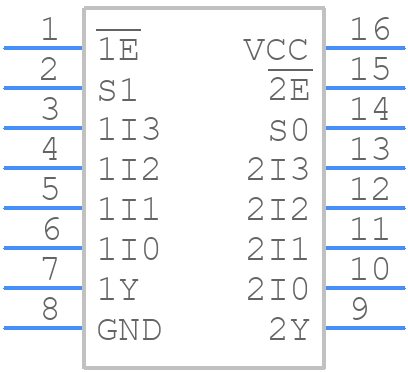

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

CD74HC153M - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G16)
click to zoom

3D Models

CD74HC153M - Texas Instruments  - 3D model - Small Outline Packages - D (R-PDSO-G16)
click to zoom

CD74HC153M Details

  • Manufacturer Part Number:

    CD74HC153M

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP, SOP16,.25

  • Pin Count:

    16

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • Risk Rank:

    0.92

  • Samacsys Modified On:

    2020-07-22 06:25:32

  • YTEOL:

    15

  • Family:

    HC

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    MULTIPLEXER

  • Max I(ol):

    0.0052 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    4

  • Number of Functions:

    2

  • Number of Inputs:

    4

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supplies:

    2/6 V

  • Power Supply Current-Max (ICC):

    0.16 mA

  • Prop. Delay@Nom-Sup:

    40 ns

  • Propagation Delay (tpd):

    220 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Subcategory:

    Multiplexer/Demultiplexer

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

Trust Checks

Community Provided
System Verified
Community Approved
Sponsored

CD74HC153M Overview

Use the download button to access the CD74HC153M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CD74H, or try a keyword search, such as Multiplexer/Demultiplexers

Parts related to CD74HC153M

Showing 0 results

CD74HC153M Alternates

Showing results

Image Part Number Model
Part Image 74HC153D,652 Nexperia

74HC153; 74HCT153 - Dual 4-input multiplexer@en-us SOP 16-Pin

Part Image MM74HC153M National Semiconductor Corporation

IC HC/UH SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, PDSO16, PLASTIC, SO-16, Multiplexer/Demultiplexer

Part Image SN74HC153DG4 Texas Instruments

HC/UH SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, PDSO16, GREEN, PLASTIC, SOIC-16

Part Image MC74HC153D Motorola Mobility LLC

HC/UH SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, PDSO16, 0.150 INCH, PLASTIC, SOIC-16

Part Image CD74HC153ME4 Texas Instruments

HC/UH SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, PDSO16, GREEN, PLASTIC, MS-012AC, SOIC-16

For a full list of alternate parts for CD74HC153M, check out Findchips.com
