The maximum clock frequency for CD74HC174E is 25 MHz. However, it's recommended to check the specific application and operating conditions to ensure reliable operation.
The asynchronous clear input (CLR) should be tied to VCC or GND through a pull-up or pull-down resistor, respectively, to prevent unwanted clearing of the flip-flops. It's recommended to use a 1 kΩ to 10 kΩ resistor for this purpose.
A simple POR circuit can be implemented using a 10 μF capacitor, a 1 kΩ resistor, and a diode. The capacitor is connected between VCC and GND, the resistor is connected between VCC and the CLR input, and the diode is connected between the CLR input and GND. This circuit ensures that the flip-flops are properly reset during power-on.
Yes, CD74HC174E is compatible with 5V systems. However, it's essential to ensure that the input signals and clock frequencies are within the recommended operating conditions to prevent damage or malfunction.
To minimize power consumption, ensure that the input signals are properly terminated, and the clock frequency is as low as possible while still meeting the system requirements. Additionally, consider using a lower supply voltage (e.g., 3.3V) if possible, and ensure that the device is properly powered down when not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CD74HC174E Overview

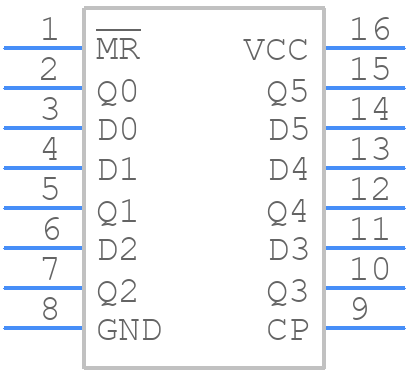

Use the download button to access the CD74HC174E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CD74H,
or try a keyword search, such as FF/Latches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
