COMPLEMENTARY SERIAL SHIFT RIGHT OUTPUT; J AND KBAR SERIAL INPUT
Count Direction:
RIGHT
Family:
HC/UH
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e4
Length:
9.9 mm
Load Capacitance (CL):
50 pF
Logic IC Type:
PARALLEL IN PARALLEL OUT
Max Frequency@Nom-Sup:
20000000 Hz
Max I(ol):
0.0052 A
Moisture Sensitivity Level:
1
Number of Bits:
4
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Output Polarity:
TRUE
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Power Supply Current-Max (ICC):
0.16 mA
Prop. Delay@Nom-Sup:
37 ns
Propagation Delay (tpd):
265 ns
Qualification Status:
Not Qualified
Schmitt Trigger:
NO
Seated Height-Max:
1.75 mm
Supply Voltage-Max (Vsup):
6 V
Supply Voltage-Min (Vsup):
2 V
Supply Voltage-Nom (Vsup):
4.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
MILITARY
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Trigger Type:
POSITIVE EDGE
Width:
3.9 mm
fmax-Min:
60 MHz
CD74HC195M96 Frequently Asked Questions (FAQs)
The maximum clock frequency for CD74HC195M96 is 25 MHz, but it can vary depending on the operating voltage and load capacitance. It's recommended to check the timing diagrams and clock frequency limitations in the datasheet for specific applications.
To ensure reliable data transfer, make sure to follow proper PCB layout guidelines, use suitable termination resistors, and maintain a stable power supply. Additionally, ensure that the clock signal is clean and has a sufficient slew rate to prevent data corruption.
Yes, CD74HC195M96 is compatible with both 3.3V and 5V logic levels. However, the output voltage levels will be dependent on the supply voltage (VCC). For 3.3V logic, use a 3.3V supply, and for 5V logic, use a 5V supply.
The maximum power dissipation for CD74HC195M96 is 500 mW. However, this value can vary depending on the operating frequency, supply voltage, and load conditions. It's essential to calculate the power dissipation for your specific application to ensure reliable operation.
CD74HC195M96 is rated for operation up to 125°C (TJ). However, the device's performance and reliability may degrade at higher temperatures. It's recommended to check the datasheet for specific temperature-related specifications and to consider using a heat sink or thermal management techniques if operating in high-temperature environments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CD74HC195M96 Overview

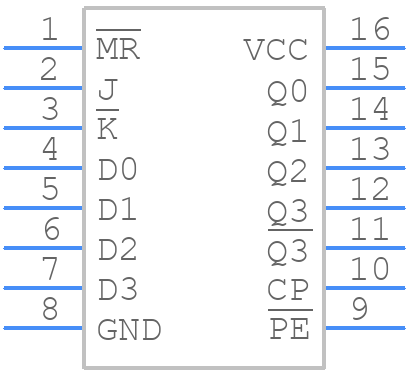

Use the download button to access the CD74HC195M96 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CD74H,
or try a keyword search, such as Shift Registers
