CD74HC238M - Texas Instruments

Description: High Speed CMOS Logic 3-to-8 Line Decoder Demultiplexer Inverting and Non-Inverting

Download CD74HC238M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

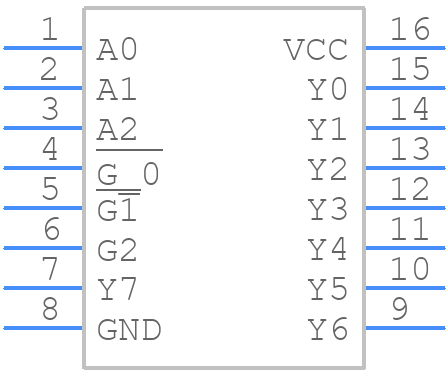

Symbol
CD74HC238M - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CD74HC238M - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G16)--0
click to zoom
3D Models
CD74HC238M - Texas Instruments - 3D model - Small Outline Packages - D (R-PDSO-G16)--0
click to zoom

CD74HC238M Details

  • Manufacturer Part Number:

    CD74HC238M

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Family:

    HC/UH

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    3-LINE TO 8-LINE DECODER

  • Max I(ol):

    0.004 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    0.16 mA

  • Prop. Delay@Nom-Sup:

    30 ns

  • Propagation Delay (tpd):

    225 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

CD74HC238M Frequently Asked Questions (FAQs)

  • The recommended PCB layout is to keep the IC as close to the power supply pins as possible, and to use a ground plane to minimize noise and crosstalk. Additionally, keep the IC away from high-frequency components and use a ferrite bead or a low-pass filter to filter out high-frequency noise.
  • Yes, the CD74HC238M can be used in high-speed applications with high-frequency clock signals. However, it's recommended to use a low-pass filter or a decoupling capacitor to filter out high-frequency noise and ensure proper operation.
  • The CD74HC238M is designed to operate from a single 5V power supply. It can tolerate power supply noise and voltage drops up to 10% of the nominal voltage. However, it's recommended to use a low-pass filter or a decoupling capacitor to filter out power supply noise and ensure proper operation.
  • Yes, the CD74HC238M is designed to operate in a temperature range of -40°C to 85°C. However, it's recommended to derate the operating temperature range by 10°C to ensure proper operation and reliability.
  • The CD74HC238M is designed to operate in a typical office environment with minimal EMI and RFI. However, it's recommended to use a shielded enclosure and a ferrite bead or a low-pass filter to filter out EMI and RFI.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CD74HC238M Overview

Use the download button to access the CD74HC238M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CD74H, or try a keyword search, such as Decoder/Drivers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
