CD74HC280E - Texas Instruments

Description: High Speed CMOS Logic 9-Bit Odd/Even Parity Generator/Checker

Download CD74HC280E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

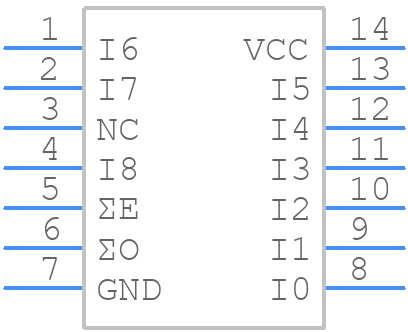

CD74HC280E - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CD74HC280E - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N (R-PDIP-T)
click to zoom
3D Models
CD74HC280E - Texas Instruments - 3D model - Dual-In-Line Packages - N (R-PDIP-T)
click to zoom

CD74HC280E Details

  • Manufacturer Part Number:

    CD74HC280E

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    14

  • Country Of Origin:

    Malaysia, Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e4

  • Length:

    19.305 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    PARITY GENERATOR/CHECKER

  • Max I(ol):

    0.0052 A

  • Number of Bits:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Power Supply Current-Max (ICC):

    0.08 mA

  • Prop. Delay@Nom-Sup:

    43 ns

  • Propagation Delay (tpd):

    300 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

CD74HC280E Frequently Asked Questions (FAQs)

  • The maximum frequency of operation for the CD74HC280E is typically around 30-40 MHz, but it can vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and application notes for more information.
  • To handle thermal issues with the CD74HC280E, ensure good thermal conductivity between the device and the PCB, use thermal vias, and consider using a heat sink or thermal pad. Also, follow proper PCB design and layout guidelines to minimize thermal resistance.
  • The recommended power-on sequence for the CD74HC280E is to apply VCC first, followed by the input signals. This helps prevent unwanted latch-up or damage to the device. It's also recommended to use a power-on reset circuit to ensure proper initialization.
  • The CD74HC280E is a 2V to 6V device, so it can be used in a 5V system. However, ensure that the input signals and output loads are within the recommended operating conditions to prevent damage or malfunction.
  • To troubleshoot issues with the CD74HC280E, start by verifying the power supply and input signals. Use a logic analyzer or oscilloscope to check the input and output waveforms. Consult the datasheet and application notes for troubleshooting guides and common pitfalls to avoid.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CD74HC280E Overview

Use the download button to access the CD74HC280E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CD74H, or try a keyword search, such as Arithmetic Circuits
