The maximum frequency of the analog signal that can be switched by the CD74HC4051MG4 is typically in the range of 10 kHz to 100 kHz, depending on the specific application and the quality of the signal. However, it's recommended to consult the datasheet and application notes for more detailed information.
While the CD74HC4051MG4 is primarily designed for analog signal switching, it can also be used to switch digital signals. However, it's essential to ensure that the digital signal levels are within the recommended voltage range of the device (typically 0V to VCC) and that the signal rise and fall times are compatible with the device's switching characteristics.
To ensure proper operation, the CD74HC4051MG4 should be powered from a stable voltage source (VCC) within the recommended range (typically 2V to 6V). Additionally, the device requires a proper bias voltage (VEE) to be applied to the VEE pin, which is typically connected to ground or a negative voltage rail. Consult the datasheet for specific voltage and current requirements.
The maximum current that can be handled by the CD74HC4051MG4 is typically in the range of 10 mA to 20 mA per channel, depending on the specific application and the voltage supply. However, it's recommended to consult the datasheet and application notes for more detailed information on current handling and thermal considerations.
The CD74HC4051MG4 is rated for operation over a temperature range of -40°C to 125°C. However, it's essential to ensure that the device is properly heat-sinked and that the operating temperature is within the recommended range to prevent thermal damage or degradation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CD74HC4051MG4 Overview

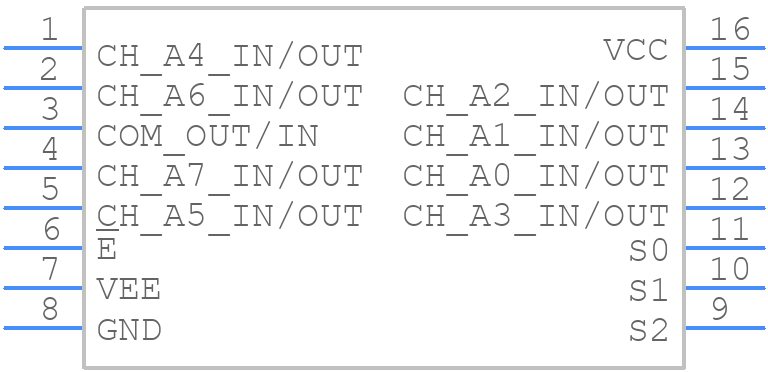

Use the download button to access the CD74HC4051MG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CD74H,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
