CD74HC4060M96G4 - Texas Instruments

Description: Counter Single 14-Bit Binary UP 16-Pin SOIC T/R

Download CD74HC4060M96G4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

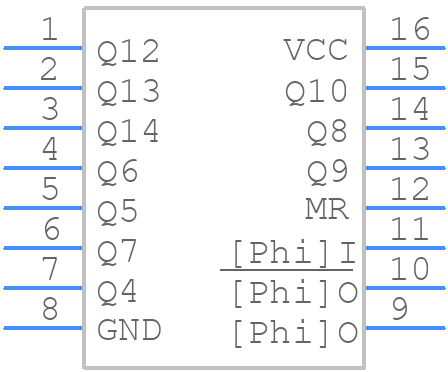

Symbol
CD74HC4060M96G4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CD74HC4060M96G4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - CD74HC4060M96G4
click to zoom
3D Models
CD74HC4060M96G4 - Texas Instruments - 3D model - Small Outline Packages - CD74HC4060M96G4
click to zoom

CD74HC4060M96G4 Details

  • Manufacturer Part Number:

    CD74HC4060M96G4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Mexico

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    OUTPUTS FROM 10 STAGES AVAILABLE; BUILT-IN OSCILLATOR

  • Count Direction:

    UP

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Load Capacitance (CL):

    50 pF

  • Load/Preset Input:

    NO

  • Logic IC Type:

    BINARY COUNTER

  • Max Frequency@Nom-Sup:

    20000000 Hz

  • Max I(ol):

    0.0052 A

  • Mode of Operation:

    ASYNCHRONOUS

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    0.08 mA

  • Prop. Delay@Nom-Sup:

    64 ns

  • Propagation Delay (tpd):

    450 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    NEGATIVE EDGE

  • Width:

    3.9 mm

  • fmax-Min:

    23 MHz

CD74HC4060M96G4 Frequently Asked Questions (FAQs)

  • The maximum clock frequency for the CD74HC4060M96G4 is 30 MHz, but it can vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and perform thorough testing to determine the maximum clock frequency for a specific design.
  • To ensure proper power and decoupling, it's recommended to follow the guidelines in the datasheet and application notes. This includes using a stable power supply, decoupling capacitors, and following proper PCB layout and design practices.
  • The recommended operating temperature range for the CD74HC4060M96G4 is -40°C to 125°C. However, it's essential to consult the datasheet and application notes for specific temperature-related information and to ensure that the device operates within the recommended range for the specific application.
  • The asynchronous reset input (RST) on the CD74HC4060M96G4 should be handled carefully to avoid unintended behavior. It's recommended to use a pull-up resistor and a capacitor to filter out noise and ensure a clean reset signal. Additionally, the reset signal should be asserted for a sufficient duration to ensure that the device is properly reset.
  • The maximum output current that the CD74HC4060M96G4 can sink or source is 25 mA. However, it's recommended to consult the datasheet and application notes for specific output current limitations and to ensure that the device is not overloaded.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CD74HC4060M96G4 Overview

Use the download button to access the CD74HC4060M96G4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CD74H, or try a keyword search, such as Counters
