OUTPUTS FROM 10 STAGES AVAILABLE; BUILT-IN OSCILLATOR
Count Direction:
UP
Family:
HC/UH
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e4
Length:
5 mm
Load Capacitance (CL):
50 pF
Load/Preset Input:
NO
Logic IC Type:
BINARY COUNTER
Max Frequency@Nom-Sup:
20000000 Hz
Max I(ol):
0.0052 A
Mode of Operation:
ASYNCHRONOUS
Moisture Sensitivity Level:
1
Number of Bits:
14
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Equivalence Code:
TSSOP16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Power Supply Current-Max (ICC):
0.08 mA
Prop. Delay@Nom-Sup:
64 ns
Propagation Delay (tpd):
450 ns
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
6 V
Supply Voltage-Min (Vsup):
2 V
Supply Voltage-Nom (Vsup):
4.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
MILITARY
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Trigger Type:
NEGATIVE EDGE
Width:
4.4 mm
fmax-Min:
23 MHz
CD74HC4060PWT Frequently Asked Questions (FAQs)
The maximum clock frequency for the CD74HC4060PWT is 20 MHz, but it can vary depending on the specific application and operating conditions. It's recommended to check the device's timing characteristics and perform thorough testing to ensure reliable operation at the desired frequency.
The CD74HC4060PWT has an asynchronous reset input (RST) that can be used to reset the device. To reset the device, pull the RST pin low for a minimum of 10 ns. The device will reset to its initial state, and all counters will be cleared.
The power consumption of the CD74HC4060PWT depends on the operating frequency, voltage, and load conditions. According to the datasheet, the typical quiescent current is 20 μA, and the dynamic current is 1.5 mA/MHz. However, it's recommended to check the device's power consumption in the specific application to ensure accurate calculations.
The CD74HC4060PWT is designed to operate with a 2V to 6V power supply. However, it's recommended to use a 3.3V or 5V power supply with a 10% tolerance to ensure reliable operation. Using a 5V power supply may require additional considerations for noise and signal integrity.
To ensure signal integrity when using the CD74HC4060PWT, it's recommended to follow proper PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors. Additionally, ensure that the clock signal is clean and has a fast rise and fall time to prevent jitter and noise issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CD74HC4060PWT Overview

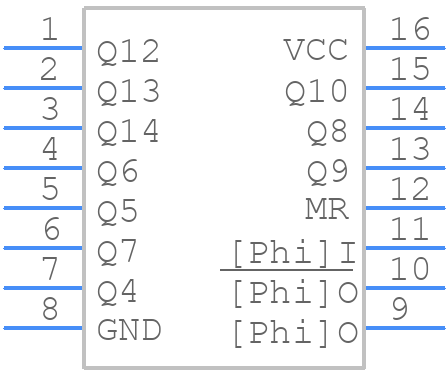

Use the download button to access the CD74HC4060PWT schematic symbol, PCB footprint, and 3D model.
