Part Image

CD74HCT04M - Texas Instruments

Description: CD74HCT04MG4, CMOS Hex Inverter 4mA 5V 14-Pin SOIC

Download ECAD Model

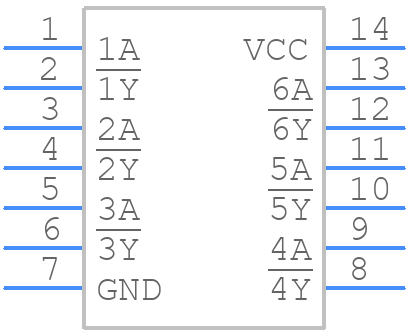

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

CD74HCT04M - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - CD74HCT04M
click to zoom

3D Models

CD74HCT04M - Texas Instruments  - 3D model - Small Outline Packages - CD74HCT04M
click to zoom

CD74HCT04M Details

  • Manufacturer Part Number:

    CD74HCT04M

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP, SOP14,.25

  • Pin Count:

    14

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • Risk Rank:

    0.82

  • Samacsys Modified On:

    2020-06-26 07:20:43

  • Family:

    HCT

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    INVERTER

  • Max I(ol):

    0.0052 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    6

  • Number of Inputs:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supplies:

    5 V

  • Power Supply Current-Max (ICC):

    0.04 mA

  • Prop. Delay@Nom-Sup:

    29 ns

  • Propagation Delay (tpd):

    29 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    1.75 mm

  • Subcategory:

    Gates

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

Risk Rank: Design Risk

CD74HCT04M — Texas Instruments
2.2 - Low Design Risk
Design Risk Rank is determined by in-depth analysis across multiple factors, including part availability, functional equivalents, lifecycle and more. Learn more →

Risk Rank

Risk Rank is a proprietary algorithm Supplyframe has developed to quantify component risk using multiple data points. This ranking helps engineers and buyers determine whether alternates should be sought for parts that are deemed as high risk.

Risk Rank Example

Risk Rank is determined by a combination of factors such as product lifecycle status, price & inventory volatility, current inventory availability and much more. Even the availability of manufacturer specifications, part documentation such as datasheets and reference designs have an impact on determining the overall riskiness of a part.

The risk is characterized across three product phases:

  • Design
  • Production
  • Long Term

We focus on the Design Phase on Component Search Engine in our evaluation of Risk.

Design Phase

The design phase of a product is at the beginning of the product lifecycle. This is when engineers are doing analysis of components in the marketplace, determining which specifications are most important for their design and assessing the cost impact of using this particular component. While this is early in the product lifecycle, choices at this point can severely impact a product much later on when the product is being made. Additionally, this stage is the one furthest from a product being made, which is why we focus on metrics of stability over time when determining Design Risk.

Risk Rank Breakdown

Trust Checks

Community Provided
System Verified
Community Approved
Sponsored

CD74HCT04M Overview

Use the download button to access the CD74HCT04M schematic symbol, PCB footprint, and 3D model.
CD74HCT04M by Texas Instruments has a score of
To find more CAD model downloads similar to this part, try a partial part number search, like CD74H, or try a keyword search, such as Gates

Parts related to CD74HCT04M

Showing 0 results

CD74HCT04M Alternates

Showing results

Image Part Number Design Risk Rank Model
Part Image SN74HCT04DT Texas Instruments

6-ch, 4.5-V to 5.5-V inverters with TTL-compatible CMOS inputs 14-SOIC -40 to 85

Part Image MC74HCT04AD onsemi

HCT SERIES, HEX 1-INPUT INVERT GATE, PDSO14, SOIC-14

Part Image TC74HCT04AF-TP1EL Toshiba America Electronic Components

IC HCT SERIES, HEX 1-INPUT INVERT GATE, PDSO14, 0.300 INCH, PLASTIC, SOIC-14, Gate

Part Image MC74HCT04ADR2 onsemi

HCT SERIES, HEX 1-INPUT INVERT GATE, PDSO14, SOIC-14

Part Image GD74HCT05D Goldstar Electron Co Ltd

Inverter, HCT Series, 6-Func, 1-Input, CMOS, PDSO14,

For a full list of alternate parts for CD74HCT04M, check out FindChips.com
