The maximum operating frequency of the CD74HCT04PWR is typically 100 MHz, but it can vary depending on the specific application and operating conditions.
To ensure signal integrity, use proper PCB layout techniques, such as using short signal traces, minimizing impedance mismatches, and using termination resistors as needed. Additionally, consider using a signal integrity analysis tool to simulate and optimize your design.
Yes, the CD74HCT04PWR is compatible with 3.3V systems. However, ensure that the input voltage does not exceed the maximum rating of 7V, and that the output current does not exceed the maximum rating of 25mA.
To ensure proper power sequencing, power up the devices in a sequence that prevents backpowering, which can cause damage to the devices. Typically, power up the devices in the order of VCC, then inputs, and finally outputs.
The recommended storage temperature range for the CD74HCT04PWR is -65°C to 150°C. Storing the device outside of this range can affect its reliability and performance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CD74HCT04PWR Overview

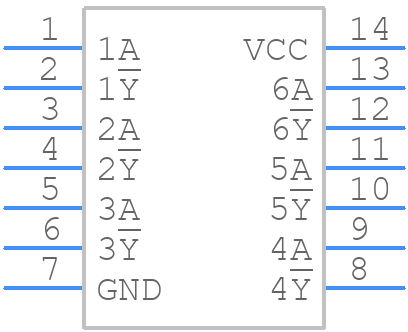

Use the download button to access the CD74HCT04PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CD74H,
or try a keyword search, such as Gates
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
