Part Image

CD74HCT221MG4 - Texas Instruments

Description: Monostable Multivibrator Dual -55C 125C 16-Pin SOIC Tube

Download ECAD Model

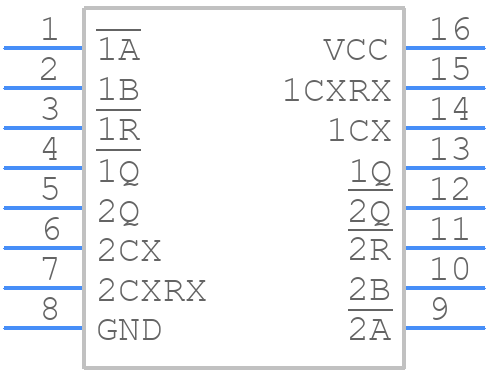

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

CD74HCT221MG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G16)
click to zoom

3D Models

CD74HCT221MG4 - Texas Instruments  - 3D model - Small Outline Packages - D (R-PDSO-G16)
click to zoom

CD74HCT221MG4 Details

  • Manufacturer Part Number:

    CD74HCT221MG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOP, SOP16,.25

  • Pin Count:

    16

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Mexico

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • Risk Rank:

    7.01

  • Samacsys Modified On:

    2023-03-07 16:10:32

  • YTEOL:

    15

  • Additional Feature:

    NON-RETRIGGERABLE

  • Family:

    HCT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    MONOSTABLE MULTIVIBRATOR

  • Max I(ol):

    0.004 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    2

  • Number of Data/Clock Inputs:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supplies:

    5 V

  • Power Supply Current-Max (ICC):

    0.08 mA

  • Propagation Delay (tpd):

    63 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Subcategory:

    Prescaler/Multivibrators

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

Trust Checks

Community Provided
System Verified
Community Approved
Sponsored

CD74HCT221MG4 Overview

Use the download button to access the CD74HCT221MG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CD74H, or try a keyword search, such as Prescaler/Multivibrators

Parts related to CD74HCT221MG4

Showing 0 results

CD74HCT221MG4 Alternates

Showing results

Image Part Number Model
Part Image 74HCT221D,112 NXP Semiconductors

74HC(T)221 - Dual non-retriggerable monostable multivibrator with reset SOP 16-Pin

Part Image 933715110118 Nexperia

Monostable Multivibrator, HCT Series, 2-Func, CMOS, PDSO16

Part Image 74HCT221D NXP Semiconductors

IC HCT SERIES, DUAL MONOSTABLE MULTIVIBRATOR, PDSO16, SOT-109, SO-16, Prescaler/Multivibrator

Part Image 74HCT221D/T3 NXP Semiconductors

IC HCT SERIES, DUAL MONOSTABLE MULTIVIBRATOR, PDSO16, SOT-109, SOP-16, Prescaler/Multivibrator

Part Image 74HCT221D-T NXP Semiconductors

IC HCT SERIES, DUAL MONOSTABLE MULTIVIBRATOR, PDSO16, SOT-109, SO-16, Prescaler/Multivibrator

For a full list of alternate parts for CD74HCT221MG4, check out Findchips.com
