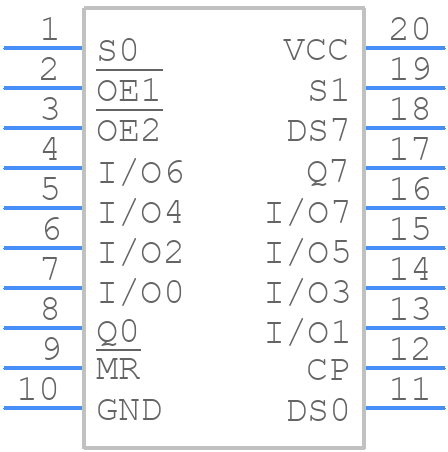

CD74HCT299E - Texas Instruments

CD74HCT299E Details

• Manufacturer Part Number:

  CD74HCT299E

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  DIP

• Pin Count:

  20

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  COMMON I/O PINS; GATED OUTPUT CONTROL

• Count Direction:

  BIDIRECTIONAL

• Family:

  HCT

• JESD-30 Code:

  R-PDIP-T20

• JESD-609 Code:

  e4

• Length:

  25.4 mm

• Load Capacitance (CL):

  50 pF

• Logic IC Type:

  PARALLEL IN PARALLEL OUT

• Max Frequency@Nom-Sup:

  16000000 Hz

• Max I(ol):

  0.004 A

• Number of Bits:

  8

• Number of Functions:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Output Characteristics:

  3-STATE

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP20,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Packing Method:

  TUBE

• Power Supply Current-Max (ICC):

  0.16 mA

• Prop. Delay@Nom-Sup:

  56 ns

• Propagation Delay (tpd):

  68 ns

• Qualification Status:

  Not Qualified

• Schmitt Trigger:

  NO

• Seated Height-Max:

  5.08 mm

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  MILITARY

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Trigger Type:

  POSITIVE EDGE

• Width:

  7.62 mm

• fmax-Min:

  24 MHz
