The maximum clock frequency of the CD74HCT4040E is 30 MHz, but it can vary depending on the operating voltage and temperature. It's recommended to check the timing diagrams and switching characteristics in the datasheet to ensure the device can meet the specific application requirements.
To ensure proper power and decoupling, use a 5V power supply with a minimum of 10uF decoupling capacitor between VCC and GND, and place it as close to the device as possible. Additionally, use a 0.1uF decoupling capacitor between VCC and GND for each IC. This will help to reduce noise and ensure stable operation.
The CD74HCT4040E is a 5V device, but it can be used in a 3.3V system with some limitations. The device will still function, but the output voltage levels will be lower, and the noise margin will be reduced. It's recommended to use a level translator or a voltage regulator to ensure proper voltage levels and to avoid any potential compatibility issues.
The asynchronous reset input (MR) should be tied to VCC through a pull-up resistor (e.g., 1kΩ) to ensure that the device is properly reset. The MR input should be driven low to reset the device, and then released to allow the device to operate normally. It's recommended to use a debouncing circuit or a reset controller to ensure a clean reset signal.
To minimize noise and ensure proper operation, it's recommended to follow good layout and routing practices. Keep the clock signal traces short and away from other signals, use a solid ground plane, and avoid crossing clock signals over other signals. Additionally, use a 50Ω termination resistor for the clock signal to reduce reflections and ensure a clean clock signal.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CD74HCT4040E Overview

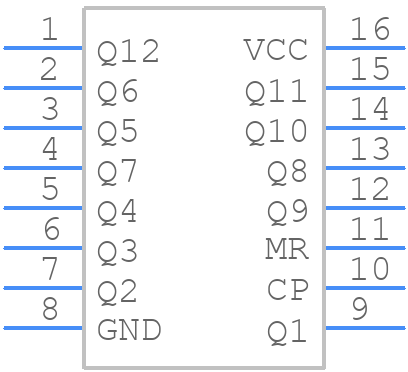

Use the download button to access the CD74HCT4040E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CD74H,
or try a keyword search, such as Counters
