CD74HCT4051MG4 - Texas Instruments

Description: Multiplexer Switch ICs Hi-Spd CMOS Anlg Mltplxr/Demltplxr

Download CD74HCT4051MG4 Model

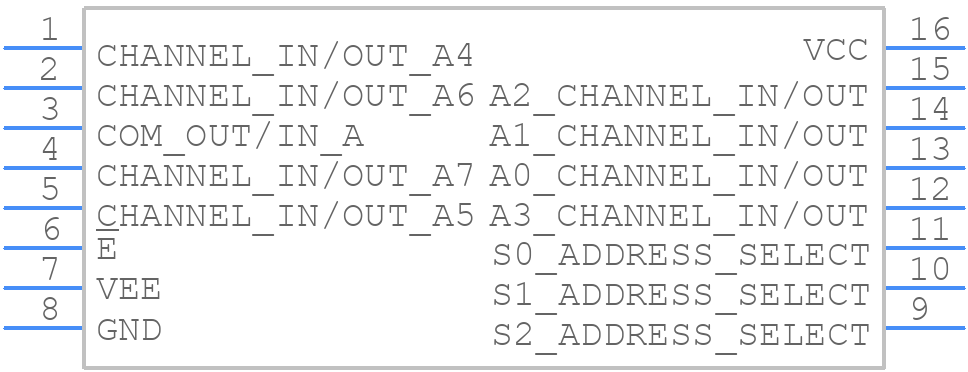

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CD74HCT4051MG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G16)
click to zoom
3D Models
CD74HCT4051MG4 - Texas Instruments  - 3D model - Small Outline Packages - D (R-PDSO-G16)
click to zoom

CD74HCT4051MG4 Details

  • Manufacturer Part Number:

    CD74HCT4051MG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • Bandwidth-Nom:

    180 MHz

  • Input Voltage-Max:

    5.5 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    73 dB

  • On-state Resistance Match-Nom:

    10 Ω

  • On-state Resistance-Max (Ron):

    270 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Signal Current-Max:

    0.025 A

  • Supply Current-Max (Isup):

    50 mA

  • Supply Voltage-Max (Vsup):

    10 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    68 ns

  • Switch-on Time-Max:

    83 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

CD74HCT4051MG4 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the CD74HCT4051MG4 is typically around 10 MHz, but it can vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and perform simulations or testing to determine the maximum frequency for a specific design.
  • To ensure proper signal integrity, it's essential to follow proper PCB design practices, such as using short signal traces, minimizing impedance mismatches, and providing adequate decoupling capacitors. Additionally, consider using series termination resistors and/or parallel termination capacitors to reduce signal reflections and ringing.
  • Yes, the CD74HCT4051MG4 is compatible with 5V logic levels, but it's essential to ensure that the input signals are within the recommended voltage range (VCC - 0.5V to VCC + 0.5V) to prevent damage to the device. Additionally, consider using voltage translation or level shifting if the input signals are not compatible with the device's voltage range.
  • It's recommended to follow a controlled power-up and power-down sequence to prevent damage to the device or other components in the system. Typically, this involves powering up the VCC supply before applying input signals, and powering down the VCC supply after removing input signals. Consult the datasheet and application notes for specific guidance.
  • The recommended layout and placement for the CD74HCT4051MG4 involves keeping the device close to the signal sources, using short signal traces, and minimizing noise coupling. It's also essential to follow proper thermal management practices, such as providing adequate heat sinking and thermal vias, to prevent overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CD74HCT4051MG4 Overview

Use the download button to access the CD74HCT4051MG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CD74H, or try a keyword search, such as Multiplexers or Switches

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
