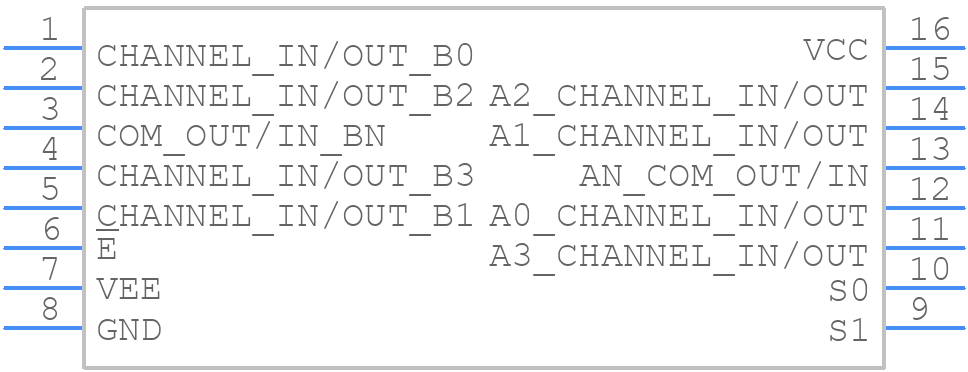

CD74HCT4052EE4 - Texas Instruments

CD74HCT4052EE4 Details

• Manufacturer Part Number:

  CD74HCT4052EE4

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Pin Count:

  16

• Country Of Origin:

  Malaysia, Mexico

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Additional Feature:

  ALSO OPERATES WITH 2V TO 10V (VCC-VEE) SUPPLY

• Analog IC - Other Type:

  DIFFERENTIAL MULTIPLEXER

• Bandwidth-Nom:

  185 MHz

• JESD-30 Code:

  R-PDIP-T16

• JESD-609 Code:

  e4

• Length:

  19.305 mm

• Neg Supply Voltage-Max (Vsup):

  -6 V

• Neg Supply Voltage-Nom (Vsup):

  -4.5 V

• Number of Channels:

  2

• Number of Functions:

  1

• Number of Terminals:

  16

• Off-state Isolation-Nom:

  65 dB

• On-state Resistance Match-Nom:

  5 Ω

• On-state Resistance-Max (Ron):

  130 Ω

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Output:

  COMMON OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.08 mm

• Signal Current-Max:

  0.025 A

• Supply Current-Max (Isup):

  0.32 mA

• Supply Voltage-Max (Vsup):

  10 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Switch-off Time-Max:

  38 ns

• Switch-on Time-Max:

  48 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Temperature Grade:

  MILITARY

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
