CD74HCT423MTE4 - Texas Instruments

Description: Monostable Multivibrator Hi-Spd CMOS Dual Retrig with Reset

Download CD74HCT423MTE4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

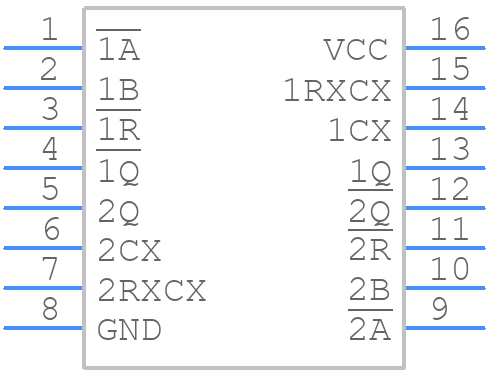

Symbol
CD74HCT423MTE4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CD74HCT423MTE4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G16)
click to zoom
3D Models
CD74HCT423MTE4 - Texas Instruments - 3D model - Small Outline Packages - D (R-PDSO-G16)
click to zoom

CD74HCT423MTE4 Details

  • Manufacturer Part Number:

    CD74HCT423MTE4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Country Of Origin:

    Mexico

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    RETRIGGERABLE

  • Family:

    HCT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    MONOSTABLE MULTIVIBRATOR

  • Max I(ol):

    0.004 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    2

  • Number of Data/Clock Inputs:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    0.08 mA

  • Propagation Delay (tpd):

    102 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

CD74HCT423MTE4 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for CD74HCT423MTE4 is 4.5V to 5.5V, as specified in the datasheet. However, it's recommended to operate the device at a fixed voltage of 5V for optimal performance.
  • The output enable (OE) pin is active-low, meaning it should be connected to GND to enable the outputs. When OE is high, the outputs are in a high-impedance state. It's recommended to connect OE to a logic signal or a pull-down resistor to ensure proper operation.
  • The maximum frequency of operation for CD74HCT423MTE4 is typically around 30-40 MHz, depending on the load capacitance and operating voltage. However, it's recommended to consult the datasheet and perform simulations to determine the maximum frequency for a specific application.
  • To ensure proper power sequencing, it's recommended to power up the VCC pin before applying any input signals. Additionally, the input signals should be stable before enabling the output enable (OE) pin. This helps prevent unwanted output states and ensures reliable operation.
  • The recommended termination scheme for CD74HCT423MTE4 outputs is to use a pull-up resistor to VCC or a pull-down resistor to GND, depending on the specific application requirements. The termination scheme should be designed to match the load impedance and ensure signal integrity.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CD74HCT423MTE4 Overview

Use the download button to access the CD74HCT423MTE4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CD74H, or try a keyword search, such as Prescaler/Multivibrators

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
