The recommended power-on sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures proper initialization and prevents latch-up.
When using CDC2351DBR in a PLL configuration, it's essential to ensure the clock signal is clean and stable. Use a clock buffer or a dedicated clock generator to provide a low-jitter clock signal, and consider adding a clock filter to remove any noise or glitches.
The maximum frequency limit for CDC2351DBR is 200 MHz. However, the actual frequency limit may vary depending on the specific application, board layout, and environmental conditions. It's recommended to consult the datasheet and perform thorough testing to determine the maximum frequency limit for your specific use case.
To optimize CDC2351DBR for low power consumption, use the lowest possible voltage supply (1.8V or 2.5V), reduce the clock frequency, and minimize the output load capacitance. Additionally, consider using the device's built-in power-down mode or shutdown feature to reduce power consumption when not in use.
CDC2351DBR has a maximum junction temperature of 150°C. Ensure proper thermal management by providing adequate heat sinking, using a thermal pad or heat spreader, and keeping the device away from heat sources. Monitor the device's temperature and adjust the operating conditions accordingly to prevent overheating.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CDC2351DBR Overview

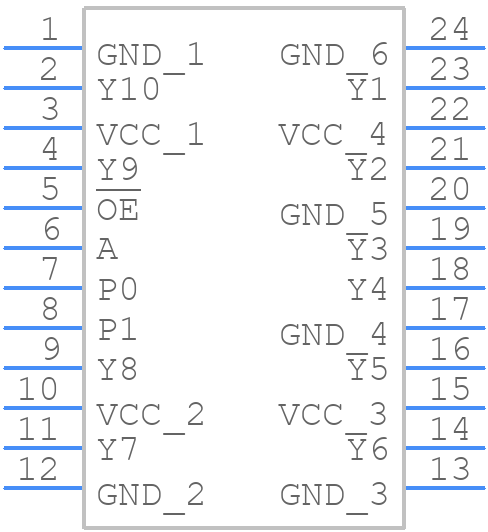

Use the download button to access the CDC2351DBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDC23,
or try a keyword search, such as Clock Drivers
