Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow the guidelines for decoupling, routing, and signal integrity to ensure optimal performance. A good practice is to use a 4-layer PCB with a solid ground plane, and to keep the clock signal traces short and away from noisy signals.
The output termination depends on the load impedance and the signal integrity requirements. For a point-to-point connection, a series termination resistor (Rs) of 50-75 ohms is recommended. For a bus topology, a parallel termination resistor (Rt) of 50-100 ohms is recommended. Consult the datasheet and application notes for more information.
The CDC421A106RGER can support clock frequencies up to 2.5 GHz. However, the maximum frequency is dependent on the specific application, PCB layout, and signal integrity requirements. It's essential to consult the datasheet and perform simulations to ensure the device can meet the required frequency.
The CDC421A106RGER requires a 1.8V or 2.5V power supply, depending on the specific application. Ensure proper power supply decoupling using ceramic capacitors (e.g., 0.1uF and 1uF) placed close to the device. Follow the recommended power supply filtering and decoupling guidelines in the datasheet.
The CDC421A106RGER has a maximum junction temperature (Tj) of 150°C. Ensure proper heat dissipation by using a thermal pad on the device, and following the recommended thermal vias and PCB layout guidelines. Consult the datasheet and thermal simulation tools to ensure the device operates within the recommended temperature range.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
CDC421A106RGER Overview

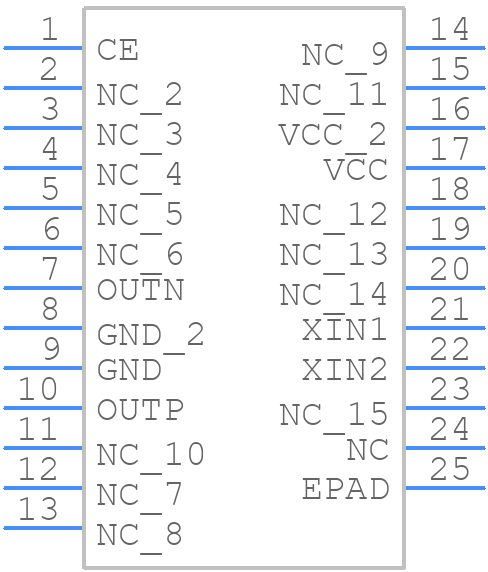

Use the download button to access the CDC421A106RGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDC42,
or try a keyword search, such as Clock Generators
