CDCDB803RSLT - Texas Instruments

Description: 8-output clock buffer for PCIe® Gen 1 to Gen 5 with selectable SMBus addresses

Download CDCDB803RSLT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

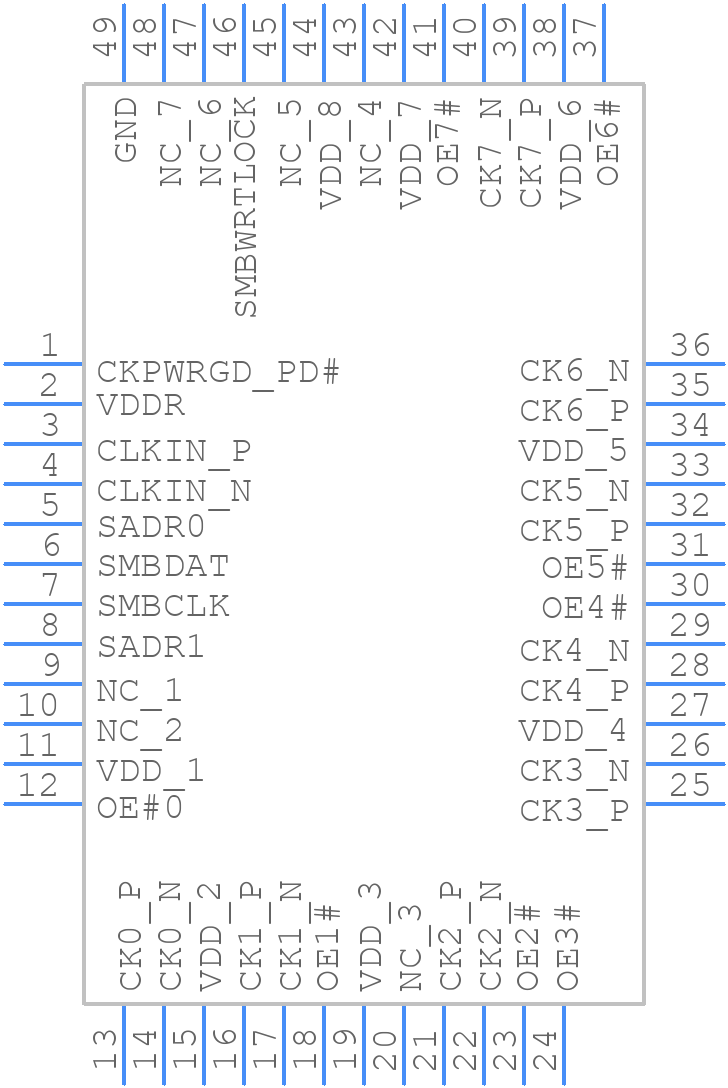

Symbol
CDCDB803RSLT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CDCDB803RSLT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSL0048B-1
click to zoom
3D Models
CDCDB803RSLT - Texas Instruments - 3D model - Quad Flat No-Lead - RSL0048B-1
click to zoom

CDCDB803RSLT Details

  • Manufacturer Part Number:

    CDCDB803RSLT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    CDC

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of True Outputs:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    9 mA

  • Prop. Delay@Nom-Sup:

    3 ns

  • Propagation Delay (tpd):

    3 ns

  • Same Edge Skew-Max (tskwd):

    0.05 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

  • fmax-Min:

    250 MHz

CDCDB803RSLT Frequently Asked Questions (FAQs)

  • Texas Instruments recommends following a star topology for clock distribution, using a solid ground plane, and keeping clock traces short and shielded to minimize jitter and noise. Additionally, use a 50-ohm transmission line and terminate it with a 50-ohm resistor to match the impedance.
  • The CDCDB803RSLT can be configured using the TI Clock Design Tool or the TI Clock Architect tool. These tools allow you to select the desired clock frequency, output format, and other parameters to generate a configuration file that can be loaded into the device.
  • The CDCDB803RSLT can support clock frequencies up to 800 MHz, but the maximum frequency depends on the specific output format and the quality of the input clock signal.
  • The CDCDB803RSLT requires a 1.8V power supply, and it's recommended to use a low-dropout regulator (LDO) to ensure a clean and stable power supply. Additionally, decouple the power pins with 0.1uF and 10uF capacitors to filter out noise and reduce jitter.
  • Yes, the CDCDB803RSLT can be used in a redundant clocking system to provide a high-reliability clocking solution. The device has built-in features such as clock redundancy and automatic clock switching to ensure that the system remains operational even in the event of a clock failure.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CDCDB803RSLT Overview

Use the download button to access the CDCDB803RSLT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDCDB, or try a keyword search, such as Clock Drivers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
