A good PCB layout for the CDCE6214RGER involves keeping the clock input traces short and shielded, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
To choose the correct output frequency, you need to consider the specific requirements of your application, such as the clock frequency required by your processor or other components. The CDCE6214RGER can generate frequencies from 10 kHz to 230 MHz, so you can select the desired frequency by programming the device's registers accordingly.
The CDCE6214RGER can handle input clock frequencies up to 230 MHz. However, it's recommended to use an input clock frequency of 10 MHz to 50 MHz for optimal performance and to minimize jitter.
The CDCE6214RGER has four output channels, each of which can be configured to generate a different clock frequency. You can program the device's registers to set the desired frequency for each output channel using the I2C interface.
The power consumption of the CDCE6214RGER depends on the output frequency and load. The device typically consumes around 20-30 mA of current. To minimize power consumption, you can use a lower output frequency, reduce the load capacitance, and use a lower supply voltage (1.8V or 2.5V instead of 3.3V).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CDCE6214RGER Overview

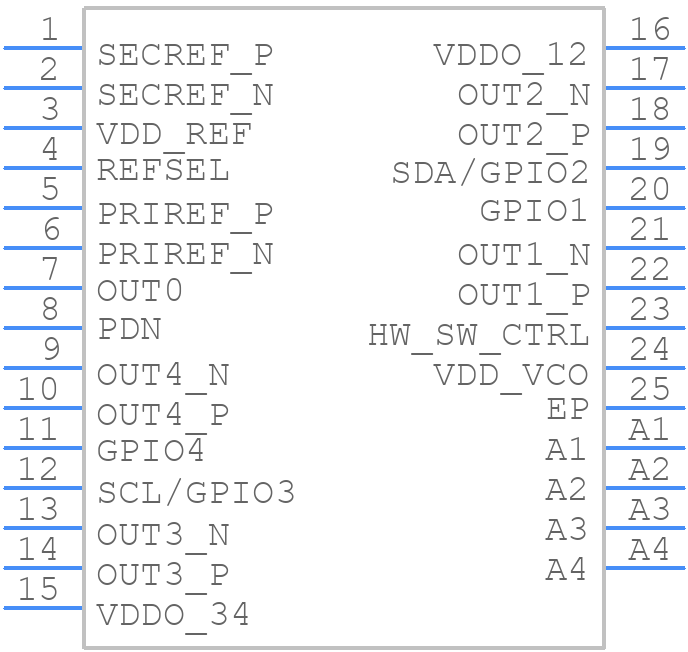

Use the download button to access the CDCE6214RGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDCE6,
or try a keyword search, such as Clock Generators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
