CDCE6214RGET - Texas Instruments

Description: Clock Generators & Support Products Ultra-low power clock generator with one PLL, four differential output 24-VQFN -40 to 85

Download CDCE6214RGET Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

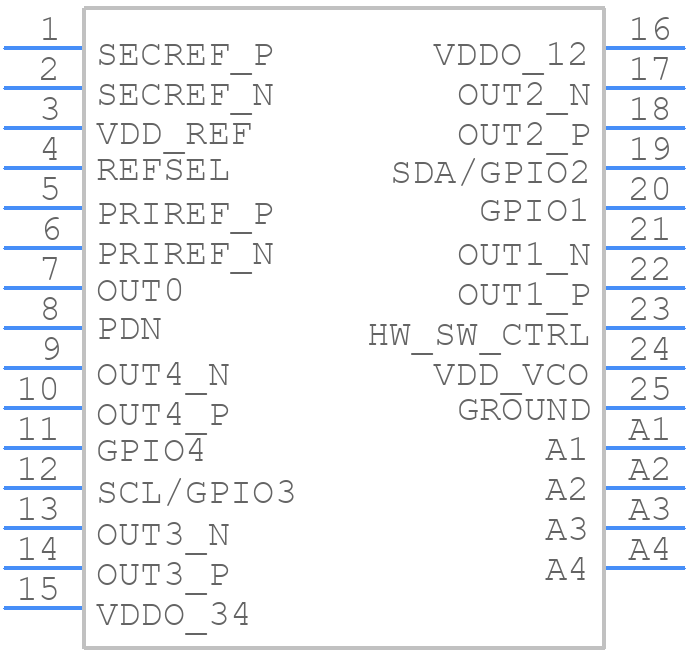

CDCE6214RGET - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CDCE6214RGET - Texas Instruments PCB footprint - Other - Other - CDCE6214RGET-1
click to zoom
3D Models
CDCE6214RGET - Texas Instruments - 3D model - Other - CDCE6214RGET-1
click to zoom

CDCE6214RGET Details

  • Manufacturer Part Number:

    CDCE6214RGET

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-07-09

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    350 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    50 MHz

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

CDCE6214RGET Frequently Asked Questions (FAQs)

  • A good PCB layout for the CDCE6214RGET involves keeping the clock input traces short and shielded, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
  • The CDCE6214RGET requires a single 3.3V power supply. It's recommended to use a low-dropout regulator (LDO) to power the device. The power sequencing requirement is to power up the device after the power supply has reached 90% of its nominal value. It's also recommended to add a 10uF capacitor between the power pin and ground to filter out noise.
  • The CDCE6214RGET can support frequencies up to 200MHz. However, the maximum frequency may vary depending on the specific application and the quality of the clock input signal. It's recommended to consult the datasheet and application notes for more information.
  • The CDCE6214RGET can be configured for a specific clock output frequency by programming the device's internal registers. The device has a built-in phase-locked loop (PLL) that can be programmed to generate a specific clock frequency. The PLL can be programmed using the device's I2C interface.
  • The typical jitter performance of the CDCE6214RGET is around 150fs RMS for a 100MHz clock output. However, the actual jitter performance may vary depending on the specific application, clock input signal quality, and PCB layout.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CDCE6214RGET Overview

Use the download button to access the CDCE6214RGET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDCE6, or try a keyword search, such as Clock Generators
