The recommended PCB layout for the CDCE706PWR involves placing the device near the power source, using a solid ground plane, and minimizing the distance between the device and the power source. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To optimize the performance of the CDCE706PWR in a noisy environment, it is recommended to use a low-ESR capacitor, decouple the power supply, and use a ferrite bead or a common-mode choke to filter out high-frequency noise. Additionally, it is recommended to use a shielded enclosure and to keep the device away from sources of electromagnetic interference.
The maximum operating temperature range for the CDCE706PWR is -40°C to 85°C. However, it is recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance and reliability.
The CDCE706PWR can be programmed using the I2C interface. The device has a built-in EEPROM that stores the configuration data. The device can be programmed using a microcontroller or a dedicated programming tool. The programming interface is described in the datasheet and the programming guide provided by Texas Instruments.
The maximum output current of the CDCE706PWR is 1.5 A. However, the output current may be limited by the power supply voltage, the output voltage, and the thermal characteristics of the device. It is recommended to consult the datasheet and the application notes for more information on the output current capabilities of the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CDCE706PWR Overview

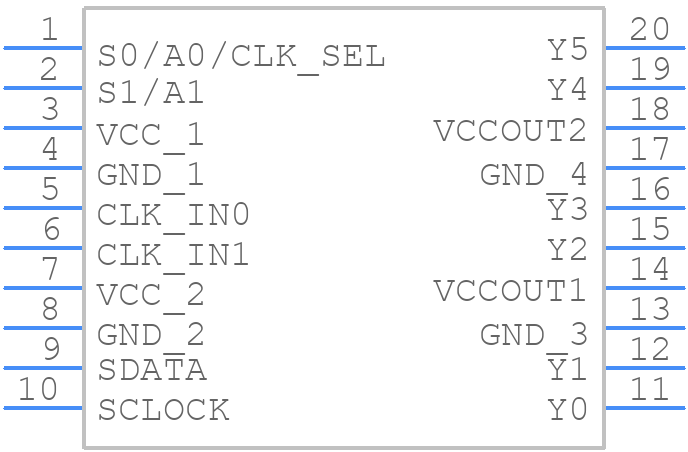

Use the download button to access the CDCE706PWR schematic symbol, PCB footprint, and 3D model.
