CDCE72010RGCT - Texas Instruments

Description: 10 Outputs Low Jitter Clock Synchronizer and Jitter Cleaner

Download CDCE72010RGCT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

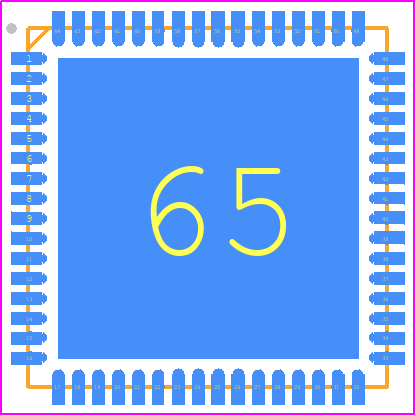

CDCE72010RGCT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGC (S-PVQFN-N64)_2
click to zoom
3D Models
CDCE72010RGCT - Texas Instruments  - 3D model - Quad Flat No-Lead - RGC (S-PVQFN-N64)_2
click to zoom

CDCE72010RGCT Details

  • Manufacturer Part Number:

    CDCE72010RGCT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LCC-64

  • Pin Count:

    64

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    72010

  • Input Conditioning:

    DIFFERENTIAL MUX

  • JESD-30 Code:

    S-PQCC-N64

  • JESD-609 Code:

    e4

  • Length:

    9 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Number of True Outputs:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC64,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    3.4 ns

  • Propagation Delay (tpd):

    3.4 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    2.8 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9 mm

  • fmax-Min:

    1500 MHz

CDCE72010RGCT Frequently Asked Questions (FAQs)

  • A good PCB layout for the CDCE72010RGCT involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
  • The output frequency of the CDCE72010RGCT depends on the input frequency, multiplication factor, and division factor. Use TI's Clock Design Tool or consult the datasheet to determine the correct output frequency for your specific application.
  • The CDCE72010RGCT can handle input frequencies up to 250 MHz. However, the maximum input frequency may be limited by the specific application and PCB layout.
  • The CDCE72010RGCT requires a stable power supply and proper decoupling to ensure optimal performance. Use a low-ESR capacitor (e.g., 0.1 μF) close to the device and follow TI's recommended power supply filtering and decoupling guidelines.
  • The CDCE72010RGCT has a typical jitter performance of <1 ps RMS (12 kHz to 20 MHz) and <2 ps RMS (100 kHz to 20 MHz). However, actual jitter performance may vary depending on the specific application and PCB layout.
