CDCE913QPWRQ1 - Texas Instruments

Description: Automotive Catalog Programmable 1-PLL VCXO Clock Synthesizer with 2.5-V or 3.3-V LVCMOS Outputs

Download CDCE913QPWRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

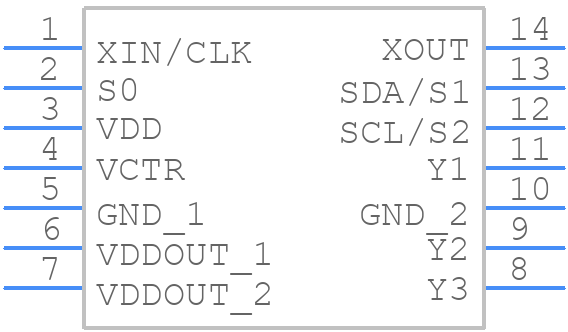

CDCE913QPWRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CDCE913QPWRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G14)
click to zoom
3D Models
CDCE913QPWRQ1 - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G14)
click to zoom

CDCE913QPWRQ1 Details

  • Manufacturer Part Number:

    CDCE913QPWRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    230 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    32 MHz

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, VIDEO

CDCE913QPWRQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the CDCE913QPWRQ1 involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
  • The output frequency of the CDCE913QPWRQ1 depends on the specific requirements of your application. Consider factors such as the clock frequency of your processor, the speed of your peripherals, and the power consumption of your system. TI provides a frequency selection guide in the datasheet.
  • The CDCE913QPWRQ1 can handle input frequencies up to 250 MHz. However, the maximum input frequency may vary depending on the specific configuration and application. Consult the datasheet and application notes for more information.
  • Proper power supply decoupling is critical for the CDCE913QPWRQ1. Use a low-ESR capacitor (e.g., 0.1 μF) close to the device, and consider adding additional decoupling capacitors on the input and output lines. Consult the datasheet and application notes for more information.
  • The CDCE913QPWRQ1 has a maximum junction temperature of 150°C. Ensure good airflow, use a heat sink if necessary, and avoid overheating the device. Consult the datasheet and application notes for thermal design guidelines.
