The recommended power-up sequence is to apply VCC first, followed by VDD, and then the input clock signal. This ensures proper device operation and prevents potential latch-up conditions.
To optimize for low jitter performance, ensure that the input clock signal is clean and stable, use a high-quality crystal oscillator, and optimize the loop filter components (R1, R2, C1, and C2) for the specific application. Additionally, consider using a low-jitter clock source and minimizing noise coupling into the device.
The CDCE925PWG4 can operate up to 250 MHz, but the maximum frequency range depends on the specific application and the quality of the input clock signal. It's recommended to consult the datasheet and application notes for specific frequency range limitations.
To configure the CDCE925PWG4 for a specific output frequency, use the device's internal PLL and divider settings. Consult the datasheet and application notes for specific configuration examples and equations to calculate the required divider settings.
For optimal performance, follow good PCB layout and routing practices, such as keeping clock signals away from noisy signals, using short and direct traces, and minimizing vias and layer changes. Consult the datasheet and application notes for specific layout and routing recommendations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CDCE925PWG4 Overview

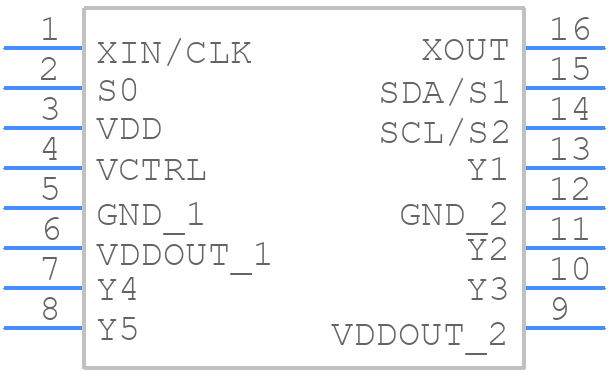

Use the download button to access the CDCE925PWG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDCE9,
or try a keyword search, such as Clock Generators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
