CDCEL913PW - Texas Instruments

Description: Programmable 1-PLL VCXO Clock Synthesizer with 1.8-V LVCMOS Outputs

Download CDCEL913PW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

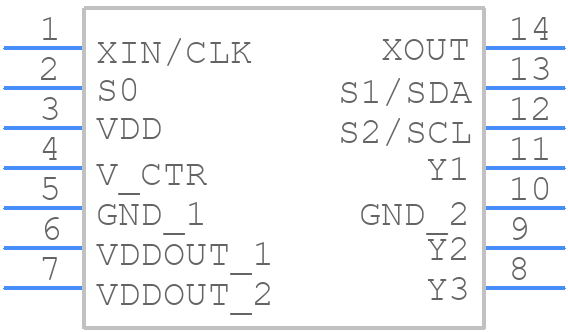

CDCEL913PW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CDCEL913PW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP-14-2021
click to zoom
3D Models
CDCEL913PW - Texas Instruments - 3D model - Small Outline Packages - TSSOP-14-2021
click to zoom

CDCEL913PW Details

  • Manufacturer Part Number:

    CDCEL913PW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    230 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    32 MHz

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

CDCEL913PW Frequently Asked Questions (FAQs)

  • A good PCB layout for the CDCEL913PW involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
  • The CDCEL913PW requires a single 3.3V or 1.8V power supply. It's recommended to use a low-dropout regulator (LDO) to power the device. Power sequencing is not critical, but it's recommended to power up the device after the power supply has stabilized. A soft-start circuit can be used to reduce inrush current during power-up.
  • The CDCEL913PW has a thermal pad that must be connected to a solid ground plane to ensure proper heat dissipation. A thermal via or a thermal pad on the PCB can be used to dissipate heat. It's recommended to keep the device away from other heat sources and to use a heat sink if the device is expected to operate at high temperatures.
  • The CDCEL913PW can be configured for different clock frequencies by adjusting the external resistor and capacitor values. The device supports clock frequencies up to 100 MHz. However, the maximum clock frequency may be limited by the quality of the external clock source and the PCB layout.
  • The CDCEL913PW is designed to minimize EMI and RFI emissions. However, it's recommended to use a shielded enclosure, keep the device away from antennas and other EMI sources, and use EMI filters on the input and output lines to ensure compliance with regulatory requirements such as FCC and CE.
