CDCEL925PW - Texas Instruments

Description: Programmable 2-PLL VCXO Clock Synthesizer with 1.8-V LVCMOS Outputs

Download CDCEL925PW Model

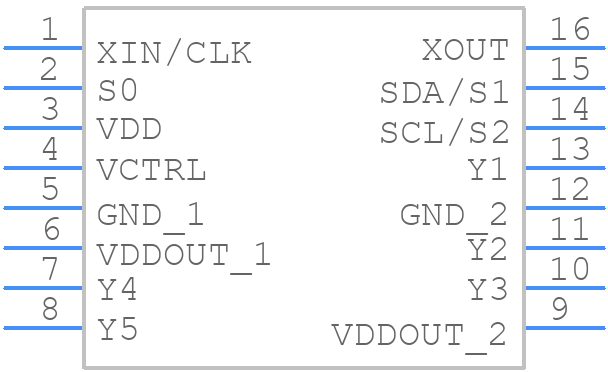

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CDCEL925PW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0016A
click to zoom
3D Models
CDCEL925PW - Texas Instruments  - 3D model - Small Outline Packages - PW0016A
click to zoom

CDCEL925PW Details

  • Manufacturer Part Number:

    CDCEL925PW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    230 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    32 MHz

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, VIDEO

CDCEL925PW Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the CDCEL925PW is 1.71V to 5.5V.
  • To ensure proper power-on and power-off, it is recommended to follow a power-up sequence of EN (enable) pin first, followed by VCC (power supply). During power-down, the sequence should be reversed.
  • The maximum frequency of operation for the CDCEL925PW is 100 MHz.
  • The output clock signal of the CDCEL925PW should be terminated with a 50-ohm resistor to prevent signal reflection and ensure signal integrity.
  • The BYPASS pin on the CDCEL925PW is used to bypass the internal voltage regulator and connect an external voltage source to the device.
