CDCEL925PWR - Texas Instruments

Description: Programmable 2-PLL VCXO Clock Synthesizer with 1.8-V LVCMOS Outputs

Download CDCEL925PWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

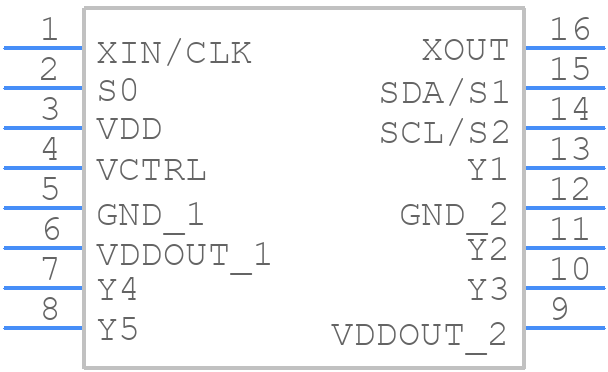

Symbol
CDCEL925PWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CDCEL925PWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0016A
click to zoom
3D Models
CDCEL925PWR - Texas Instruments - 3D model - Small Outline Packages - PW0016A
click to zoom

CDCEL925PWR Details

  • Manufacturer Part Number:

    CDCEL925PWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    230 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    32 MHz

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, VIDEO

CDCEL925PWR Frequently Asked Questions (FAQs)

  • A good PCB layout for the CDCEL925PWR involves keeping the input and output traces separate, using a solid ground plane, and placing the decoupling capacitors close to the device. Additionally, it's recommended to use a shielded enclosure and to keep the device away from high-frequency sources.
  • The CDCEL925PWR requires a single 3.3V or 5V power supply. It's recommended to use a low-dropout regulator (LDO) to power the device. The power sequencing requirement is to power up the device after the input voltage has reached its nominal value, and to power down the device before the input voltage drops below its minimum specified value.
  • The CDCEL925PWR can handle clock frequencies up to 200 MHz. However, the maximum clock frequency may vary depending on the specific application and the quality of the clock signal.
  • The CDCEL925PWR can be configured for a specific clock output frequency by programming the device's internal registers. The specific configuration depends on the desired output frequency and the input clock frequency. Refer to the device's programming guide for more information.
  • The typical power consumption of the CDCEL925PWR is around 150 mW at 3.3V and 250 mW at 5V, depending on the clock frequency and output load. However, the actual power consumption may vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CDCEL925PWR Overview

Use the download button to access the CDCEL925PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDCEL, or try a keyword search, such as Clock Generators
