CDCF5801ADBQ - Texas Instruments

Description: Low Jitter PLL Based Multiplier/Divider with programmable delay lines down to sub 10ps

Download CDCF5801ADBQ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

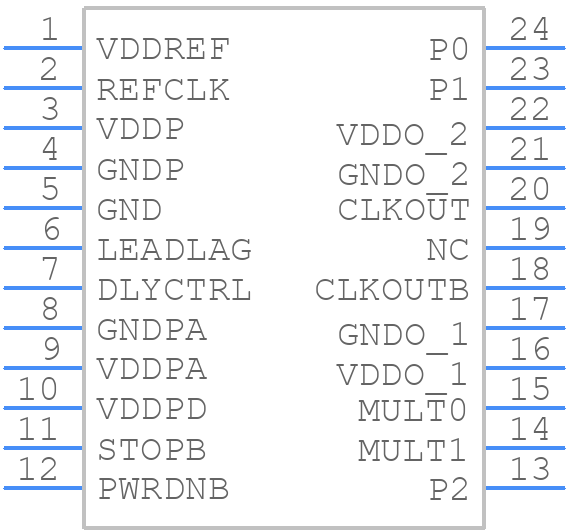

CDCF5801ADBQ - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CDCF5801ADBQ - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - CDCF5801ADBQ
click to zoom
3D Models
CDCF5801ADBQ - Texas Instruments - 3D model - Small Outline Packages - CDCF5801ADBQ
click to zoom

CDCF5801ADBQ Details

  • Manufacturer Part Number:

    CDCF5801ADBQ

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SSOP-24

  • Pin Count:

    24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    DIFFERENTIAL/SINGLE-ENDED OUTPUT AVAILABLE

  • Family:

    5801

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Max I(ol):

    0.04 A

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of True Outputs:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP24,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

  • fmax-Min:

    280 MHz

CDCF5801ADBQ Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures proper initialization and prevents latch-up or damage to the device.
  • When using the CDCF5801ADBQ in a system with multiple clock domains, it's essential to ensure that the clock signal is properly synchronized and buffered to prevent clock domain crossing issues. Use a clock buffer or a clock domain crossing circuit to synchronize the clock signal.
  • The maximum frequency of operation for the CDCF5801ADBQ is 100 MHz. However, the actual operating frequency may be limited by the system's clock distribution, signal integrity, and other factors.
  • The CDCF5801ADBQ does not have a dedicated reset pin. Instead, you can use the asynchronous reset feature by tying the RST pin to VCC through a resistor and then pulling it low to reset the device.
  • The recommended termination scheme for the CDCF5801ADBQ's outputs is to use a series resistor (Rs) and a parallel capacitor (Cp) to match the impedance of the transmission line and prevent signal reflections.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CDCF5801ADBQ Overview

Use the download button to access the CDCF5801ADBQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDCF5, or try a keyword search, such as Clock Drivers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
