CDCL1810ARGZT - Texas Instruments

Description: 1.8V 1-to-10 High Performance Differential Clock Buffer with Individual Output Enable/Disable

Download CDCL1810ARGZT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

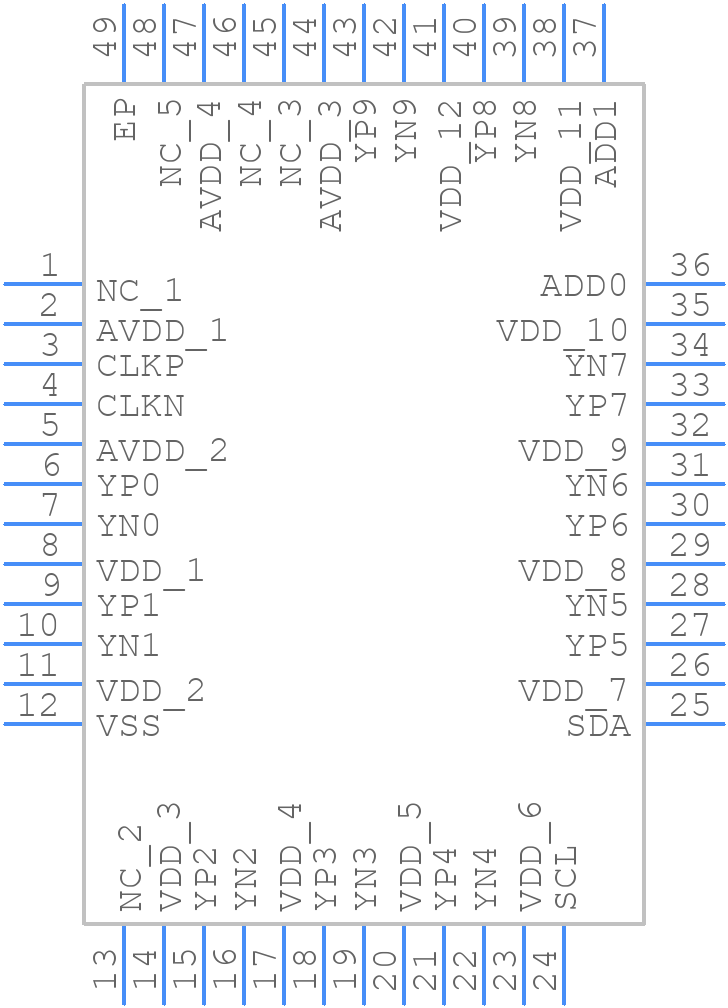

CDCL1810ARGZT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CDCL1810ARGZT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ0048B
click to zoom
3D Models
CDCL1810ARGZT - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ0048B
click to zoom

CDCL1810ARGZT Details

  • Manufacturer Part Number:

    CDCL1810ARGZT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    CDCL

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.008 A

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of True Outputs:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Same Edge Skew-Max (tskwd):

    0.064 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    1.9 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • fmax-Min:

    650 MHz

CDCL1810ARGZT Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a low-inductance PCB layout with short traces, and a solid ground plane to minimize noise and jitter. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
  • The output termination depends on the load impedance and the signal frequency. For a 50-ohm load, a series termination of 50 ohms is recommended. For a high-impedance load, a parallel termination of 100 ohms to 200 ohms is recommended. Consult the datasheet and application notes for more information.
  • The CDCL1810ARGZT can accept input clock frequencies up to 250 MHz. However, the maximum frequency is dependent on the specific application and the quality of the input clock signal. Consult the datasheet and application notes for more information.
  • Use a low-ESR capacitor (e.g., 0.1 uF to 1 uF) as close as possible to the power pins (VCC and GND). Additionally, use a 10 uF to 22 uF capacitor on the input power rail to filter out noise and ripple. Ensure that the power supply can provide the required current and voltage.
  • The typical power consumption of the CDCL1810ARGZT is around 150 mW to 200 mW, depending on the output frequency and load. Consult the datasheet for more information on power consumption and thermal considerations.
