CDCL6010RGZT - Texas Instruments

Description: 1.8V 11-Outputs Clock Multiplier, Distributor, Jitter Cleaner and Buffer

Download CDCL6010RGZT Model
Schematic

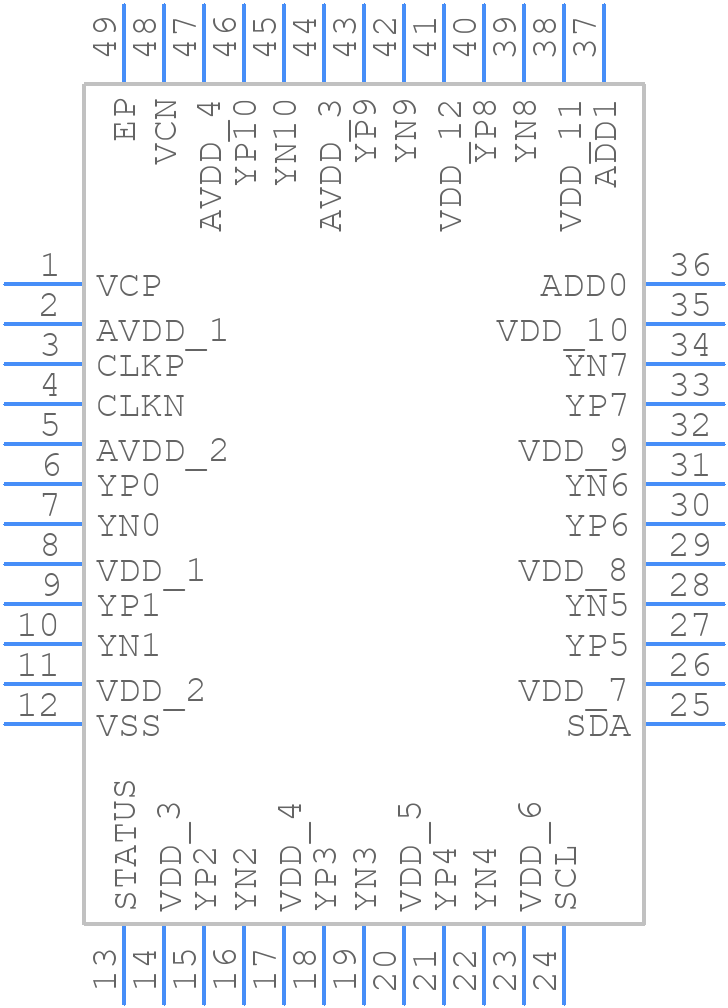

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CDCL6010RGZT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ0048B
click to zoom
3D Models
CDCL6010RGZT - Texas Instruments  - 3D model - Quad Flat No-Lead - RGZ0048B
click to zoom

CDCL6010RGZT Details

  • Manufacturer Part Number:

    CDCL6010RGZT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    VQFN-48

  • Pin Count:

    48

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    6010

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Max I(ol):

    0.008 A

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of True Outputs:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.064 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    1.9 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • fmax-Min:

    683.28 MHz

CDCL6010RGZT Frequently Asked Questions (FAQs)

  • A good PCB layout for the CDCL6010RGZT involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to avoid routing signals under the device.
  • The CDCL6010RGZT requires a single 3.3V power supply, and it's recommended to use a low-dropout regulator (LDO) to ensure a clean power supply. The power sequencing requirement is to power up the VCC pin before the input signals, and to ensure that the input signals are stable before powering up the device.
  • The maximum frequency of operation for the CDCL6010RGZT is 100 MHz, and the power consumption increases with frequency. At higher frequencies, the device consumes more power due to the increased switching activity. It's recommended to operate the device at the lowest frequency required for the application to minimize power consumption.
  • The CDCL6010RGZT has a maximum junction temperature of 150°C, and it's recommended to keep the device temperature below 125°C for reliable operation. Thermal management can be achieved by using a heat sink, improving air flow, and reducing the power consumption. It's also recommended to follow the thermal design guidelines provided in the datasheet.
  • The CDCL6010RGZT has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. To prevent latch-up, it's recommended to use a series resistor on the input signals, and to ensure that the input signals are within the specified voltage range.
