CDCLVC1102PW - Texas Instruments

Description: Low Jitter, 1:2 LVCMOS Fan-out Clock Buffer

Download CDCLVC1102PW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

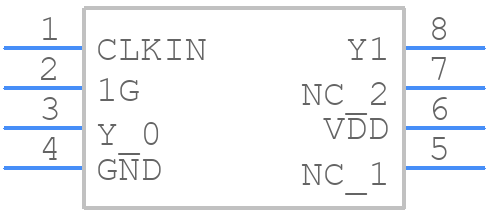

CDCLVC1102PW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
CDCLVC1102PW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G8)
click to zoom
3D Models
CDCLVC1102PW - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G8)
click to zoom

CDCLVC1102PW Details

  • Manufacturer Part Number:

    CDCLVC1102PW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-8

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    CDC

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.012 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of True Outputs:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    2 ns

  • Propagation Delay (tpd):

    2.6 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.05 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    2.7 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • fmax-Min:

    250 MHz

CDCLVC1102PW Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to route the clock signal on the top layer, away from other signals. Additionally, use a 50-ohm transmission line and terminate the clock signal with a 50-ohm resistor to minimize reflections.
  • The CDCLVC1102PW requires a single 3.3V power supply. Ensure that the power supply is clean and well-regulated. Power sequencing is not critical, but it's recommended to power up the device after the power supply has stabilized.
  • The CDCLVC1102PW can handle clock frequencies up to 200 MHz. The clock signal should be a differential signal with a peak-to-peak amplitude of 1.4V to 2.2V, and a common-mode voltage of 1.3V to 1.7V.
  • The CDCLVC1102PW can be configured for different output frequencies by adjusting the external resistors and capacitors. However, the output frequency is limited to a maximum of 200 MHz, and the device can only generate frequencies that are integer multiples of the input clock frequency.
  • The CDCLVC1102PW has a junction temperature range of -40°C to 125°C. Ensure good thermal conductivity by using a heat sink or a thermal pad, and avoid operating the device near its maximum junction temperature to ensure reliable operation.
