A good PCB layout for the CDCLVC1103PWR involves keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
Proper power and decoupling are crucial for the CDCLVC1103PWR. Use a low-ESR capacitor (e.g., 0.1 μF) close to the device's power pins, and consider adding a 10 μF capacitor in parallel for additional filtering. Ensure the power supply is stable and within the recommended voltage range.
The CDCLVC1103PWR can handle clock frequencies up to 200 MHz. However, the actual frequency limit may vary depending on the specific application, PCB layout, and output load. It's essential to verify the device's performance in your specific use case.
The CDCLVC1103PWR has a programmable output voltage. To configure the output voltage, use the VSEL pins to select one of the four preset voltage levels (0.9 V, 1.2 V, 1.5 V, or 1.8 V) or use an external resistor divider network to set a custom voltage level.
The typical power consumption of the CDCLVC1103PWR varies depending on the output voltage, load current, and operating frequency. According to the datasheet, the device typically consumes around 10-20 mA of quiescent current, but this can increase to several hundred milliamps under heavy load conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CDCLVC1103PWR Overview

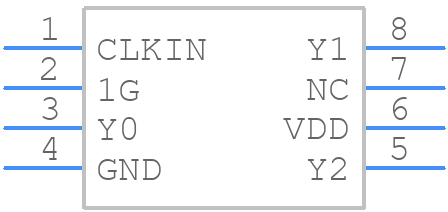

Use the download button to access the CDCLVC1103PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDCLV,
or try a keyword search, such as Clock Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
