CDCLVC1104PW - Texas Instruments

Description: Low Jitter, 1:4 LVCMOS Fan-out Clock Buffer

Download CDCLVC1104PW Model

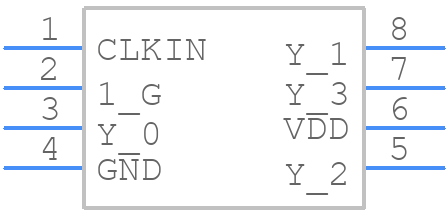

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CDCLVC1104PW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0008A
click to zoom
3D Models
CDCLVC1104PW - Texas Instruments  - 3D model - Small Outline Packages - PW0008A
click to zoom

CDCLVC1104PW Details

  • Manufacturer Part Number:

    CDCLVC1104PW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-8

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    CDC

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.012 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of True Outputs:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    2 ns

  • Propagation Delay (tpd):

    2.6 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.05 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    2.7 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • fmax-Min:

    250 MHz

CDCLVC1104PW Frequently Asked Questions (FAQs)

  • A good PCB layout for the CDCLVC1104PW involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to avoid routing high-speed signals near the device.
  • The CDCLVC1104PW requires a single 1.8V to 3.6V power supply. It's recommended to power the device with a low-noise, low-dropout regulator, and to ensure that the power supply is stable and well-regulated. Power sequencing is not critical, but it's recommended to power up the device after the power supply has stabilized.
  • The CDCLVC1104PW can operate up to 200 MHz, but the maximum frequency of operation depends on the specific application and the quality of the PCB layout. As the frequency of operation increases, power consumption also increases. It's recommended to optimize the PCB layout and reduce the frequency of operation to minimize power consumption.
  • The CDCLVC1104PW has a maximum junction temperature of 150°C. To ensure proper thermal management, it's recommended to provide adequate airflow, use a heat sink if necessary, and avoid blocking the airflow around the device. The device also has a thermal shutdown feature that turns off the device if the junction temperature exceeds 150°C.
  • The CDCLVC1104PW has built-in ESD protection diodes on all pins, which can withstand up to 2 kV of ESD voltage. To prevent latch-up, it's recommended to use a series resistor on the input pins, and to avoid applying voltage to the input pins before powering up the device.
