A good PCB layout for the CDCLVC1106PW involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to avoid routing signals under the device.
The CDCLVC1106PW requires a single 1.8V to 3.3V power supply. It's recommended to power the device with a low-noise, low-dropout regulator. Power sequencing is not critical, but it's recommended to power the device after the input signals are stable.
The CDCLVC1106PW can operate up to 200 MHz. As the frequency of operation increases, so does the power consumption. However, the device is designed to minimize power consumption while maintaining high-speed performance.
The CDCLVC1106PW has a maximum junction temperature of 150°C. To manage thermal performance, ensure good airflow, use a heat sink if necessary, and avoid blocking the thermal pad on the bottom of the package. The device is designed to operate within a specified thermal range, and exceeding this range may affect reliability.
The CDCLVC1106PW has built-in ESD protection diodes on all pins, which can withstand up to 2 kV of ESD. To prevent latch-up, ensure that the device is powered correctly, and avoid applying voltages that exceed the maximum ratings.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CDCLVC1106PW Overview

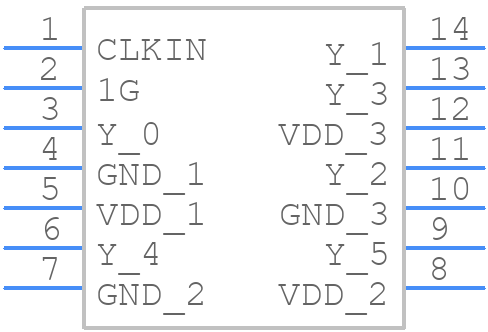

Use the download button to access the CDCLVC1106PW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDCLV,
or try a keyword search, such as Clock Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
