A good PCB layout for the CDCLVC1108PWR involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
To ensure proper power and decoupling, use a low-ESR capacitor (e.g., 0.1 μF) between VCC and GND, and a larger capacitor (e.g., 10 μF) between VCC and GND for bulk decoupling. Place these capacitors close to the device and use a low-inductance path to the power pins.
The CDCLVC1108PWR can operate up to 200 MHz, but the maximum frequency of operation depends on the specific application, output load, and clock signal quality. Consult the datasheet and application notes for more information.
Configure the CDCLVC1108PWR by selecting the appropriate input clock frequency, output frequency, and output format (e.g., LVCMOS, LVDS, or HCSL). Use the device's internal dividers and multipliers to generate the desired output frequency. Consult the datasheet and application notes for specific configuration examples.
The CDCLVC1108PWR has a maximum junction temperature of 150°C. Ensure good thermal conduction by using a heat sink or thermal pad, and avoid overheating by keeping the device within the recommended operating temperature range (–40°C to 85°C).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CDCLVC1108PWR Overview

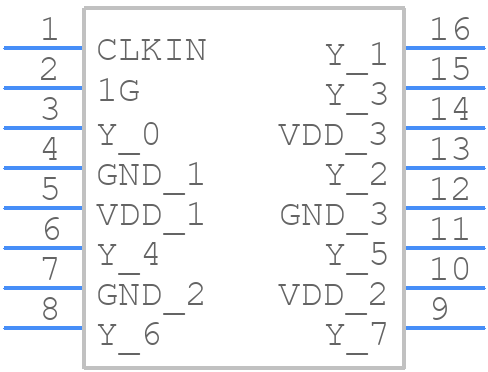

Use the download button to access the CDCLVC1108PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDCLV,
or try a keyword search, such as Clock Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
