A good PCB layout for the CDCLVC1110PWR involves placing the device close to the power supply, using a solid ground plane, and minimizing the length of the clock signal traces. Additionally, it's recommended to use a low-ESR capacitor for the VCC filter capacitor.
To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence, which involves applying VCC before applying the input clock signal. Also, ensure that the input clock signal is stable and within the recommended frequency range.
When selecting the output load capacitance, consider the clock frequency, output voltage, and the capacitive load of the downstream devices. A general rule of thumb is to keep the output load capacitance below 10 pF to ensure optimal performance and minimize signal degradation.
To troubleshoot issues with the CDCLVC1110PWR, start by verifying the power supply voltage and input clock signal integrity. Check for any signs of noise or interference on the clock signal, and ensure that the device is properly decoupled. If issues persist, consider using a clock signal analyzer or oscilloscope to further diagnose the problem.
Yes, the CDCLVC1110PWR is a high-power device and requires proper thermal management to ensure reliable operation. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. Also, follow the recommended operating temperature range to prevent overheating.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
CDCLVC1110PWR Overview

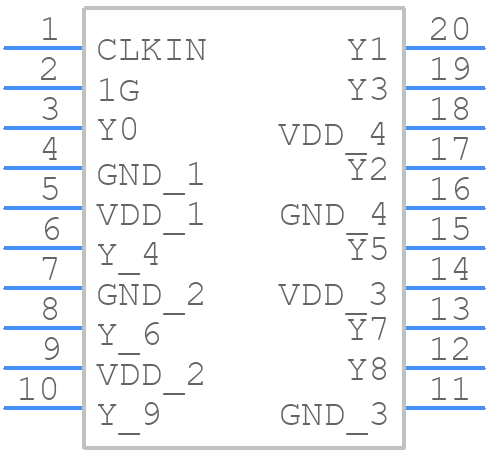

Use the download button to access the CDCLVC1110PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDCLV,
or try a keyword search, such as Clock Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
