Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to route the clock signal on the top layer, with the VCC and GND pins on the bottom layer. Additionally, it's recommended to use a 50-ohm transmission line for the clock signal and to keep the clock signal away from other signals.
The CDCLVC1112PW requires a single 3.3V power supply, and it's recommended to use a low-dropout regulator (LDO) to ensure a clean power supply. The power sequencing requirement is to power up the VCC pin before the clock signal, and to ensure that the power supply is stable before applying the clock signal.
The CDCLVC1112PW can handle clock frequencies up to 200 MHz, but the maximum frequency is limited by the output load capacitance and the clock signal quality. It's recommended to use a clock signal with a rise time of less than 1 ns and a clock frequency less than 150 MHz for optimal performance.
To troubleshoot issues with the CDCLVC1112PW, use an oscilloscope to measure the clock signal and check for signal distortion, jitter, or ringing. Also, check the power supply voltage and ensure it's within the recommended range. Additionally, verify that the output load capacitance is within the recommended range and that the clock signal is properly terminated.
Yes, the CDCLVC1112PW can be used in a differential clock distribution application, but it's recommended to use a differential clock buffer, such as the THS7313, to ensure proper signal conditioning and to minimize signal degradation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CDCLVC1112PW Overview

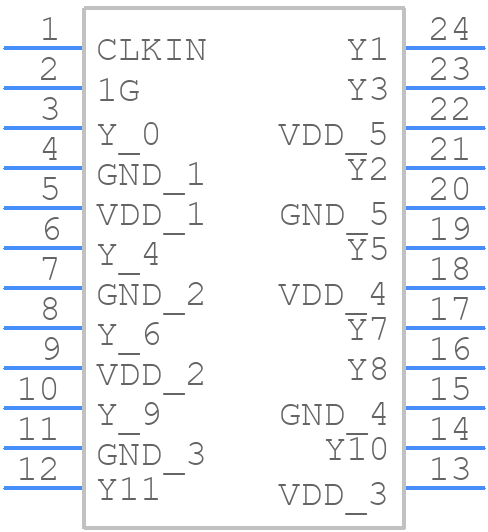

Use the download button to access the CDCLVC1112PW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDCLV,
or try a keyword search, such as Clock Drivers
