CDCLVD110VF - Texas Instruments

Description: CDCLVD110VF, Clock Buffer LVDS 2-Input, 32-Pin LQFP

Download CDCLVD110VF Model

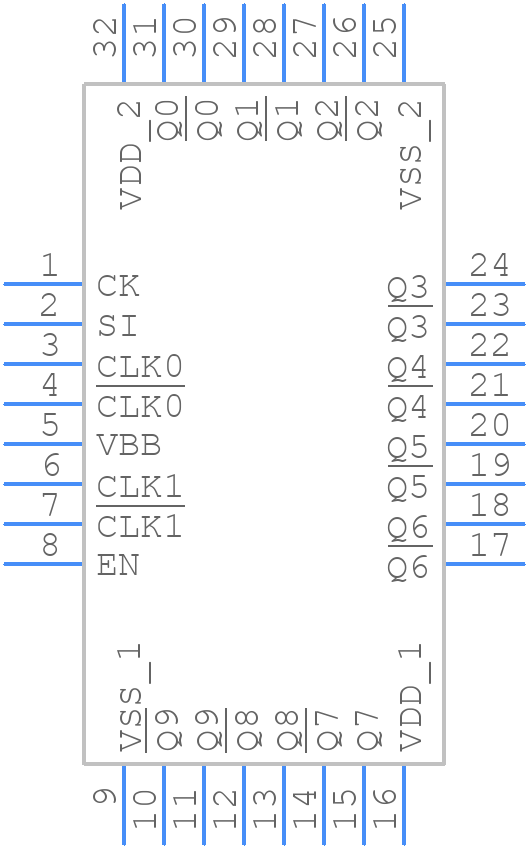

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CDCLVD110VF - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - VF0032A
click to zoom
3D Models
CDCLVD110VF - Texas Instruments  - 3D model - Quad Flat Packages - VF0032A
click to zoom

CDCLVD110VF Details

  • Manufacturer Part Number:

    CDCLVD110VF

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    LQFP-32

  • Pin Count:

    32

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Family:

    110

  • Input Conditioning:

    DIFFERENTIAL MUX

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of True Outputs:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Packing Method:

    TRAY

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    130 mA

  • Prop. Delay@Nom-Sup:

    3 ns

  • Propagation Delay (tpd):

    3 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max (Vsup):

    2.625 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • fmax-Min:

    150 MHz

CDCLVD110VF Frequently Asked Questions (FAQs)

  • The recommended input voltage range for the CDCLVD110VF is 2.97V to 3.63V, although it can operate with an input voltage as low as 2.5V or as high as 3.8V.
  • To ensure proper bypassing, place a 0.1uF ceramic capacitor between the VCC pin and the GND pin, and a 1uF to 10uF capacitor between the VCC pin and the input voltage source. This helps to filter out noise and reduce jitter.
  • The CDCLVD110VF can handle clock frequencies up to 110MHz, but it's recommended to operate it at frequencies below 100MHz for optimal performance and minimal jitter.
  • The CDCLVD110VF has a programmable output frequency divider. To configure it, connect the desired frequency selection pins (FSEL0-FSEL2) to either VCC or GND, according to the frequency selection table in the datasheet.
  • The typical power consumption of the CDCLVD110VF is around 15mA, but it can vary depending on the input voltage, clock frequency, and output load.
