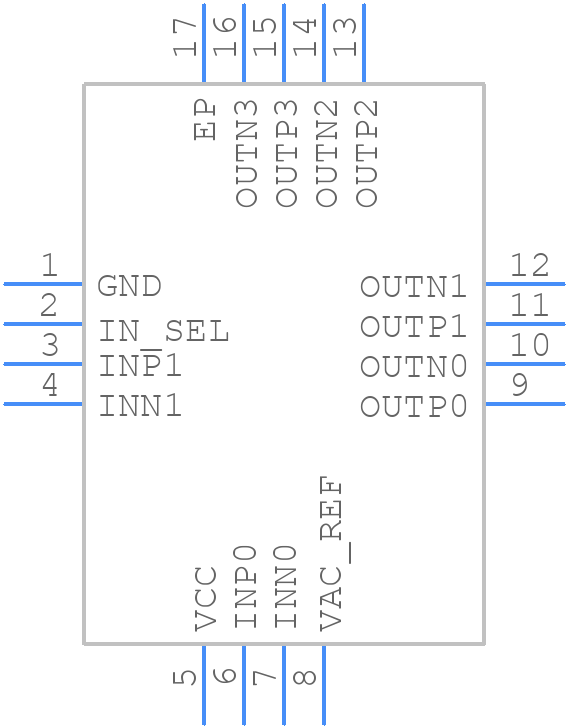

CDCLVD1204RGTT - Texas Instruments

CDCLVD1204RGTT Frequently Asked Questions (FAQs)

• What is the recommended layout and routing for the CDCLVD1204RGTT to minimize jitter and noise?
  Texas Instruments recommends a symmetrical layout with a central clock source, using a star topology to minimize clock skew. Route clock traces as short and direct as possible, avoiding vias and 90-degree turns. Use a solid ground plane and decouple the device with 0.1uF and 10uF capacitors.
• How do I ensure the CDCLVD1204RGTT is properly terminated to prevent signal reflections?
  Use a series termination resistor (Rs) of 50-75 ohms at the clock output, and a parallel termination resistor (Rp) of 50-75 ohms at the load. Ensure the transmission line impedance matches the termination impedance to prevent signal reflections.
• What is the recommended power-up sequence for the CDCLVD1204RGTT to prevent latch-up or damage?
  Power up the device in the following sequence: VCC, then VCCIO, and finally the input clock signal. Ensure the input clock signal is stable and within the recommended frequency range before applying power to the device.
• How do I optimize the CDCLVD1204RGTT for low power consumption?
  Use the lowest possible input clock frequency, disable unused outputs, and use the power-down feature (PD pin) when the device is not in use. Additionally, consider using a lower voltage supply (VCC) and optimizing the output load capacitance to minimize power consumption.
• What are the thermal considerations for the CDCLVD1204RGTT, and how do I prevent overheating?
  The CDCLVD1204RGTT has a maximum junction temperature (TJ) of 150°C. Ensure good airflow, use a heat sink if necessary, and avoid blocking the thermal pad on the package. Monitor the device temperature and reduce power consumption or provide additional cooling if necessary.
