A good PCB layout for the CDCLVD1208RHDR involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
The CDCLVD1208RHDR requires a stable power supply with minimal noise and ripple. Use a high-quality power supply, and decouple the device with 0.1uF and 10uF capacitors between VCC and GND, placed close to the device. Additionally, use a 10kΩ resistor in series with the input clock to prevent overdriving.
The CDCLVD1208RHDR can handle clock frequencies up to 1.2 GHz. However, the maximum frequency may vary depending on the specific application, PCB layout, and output load. It's essential to consult the datasheet and application notes for specific guidance.
The CDCLVD1208RHDR can be configured for a specific output frequency by selecting the appropriate input clock frequency, divider values, and output frequency configuration. Consult the datasheet and application notes for specific guidance on configuring the device for your desired output frequency.
The typical power consumption of the CDCLVD1208RHDR is around 350mW at 1.2V and 1.2GHz output frequency. However, the actual power consumption may vary depending on the specific application, output load, and operating conditions.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
CDCLVD1208RHDR Overview

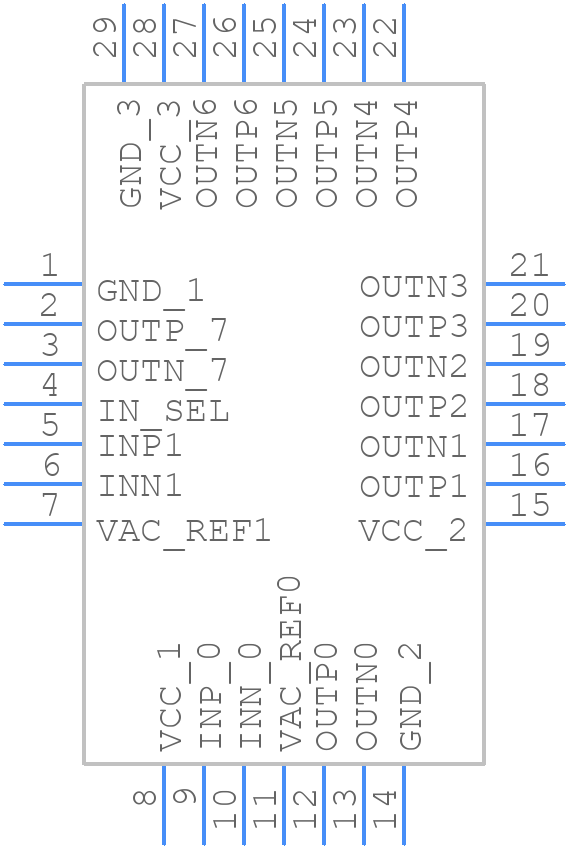

Use the download button to access the CDCLVD1208RHDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CDCLV,
or try a keyword search, such as Clock Drivers
